Home > products > Flow Meter > CAFS1000A humidity 0〜100%RH Wide range of flow rates 0-60m/s

CAFS1000A humidity 0〜100%RH Wide range of flow rates 0-60m/s

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Model Number: CAFS1000A

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price
Highlight:
Wide Range Of Flow Rates:
0-60m/s
Operating Temperature:
-40°C~125°C
Humidity:
0〜100%RH
Storage Temperature:
-40°C To 125°C
Wide Range Of Flow Rates:
0-60m/s
Operating Temperature:
-40°C~125°C
Humidity:
0〜100%RH
Storage Temperature:
-40°C To 125°C
CAFS1000A humidity 0〜100%RH Wide range of flow rates 0-60m/s

Product Introduction

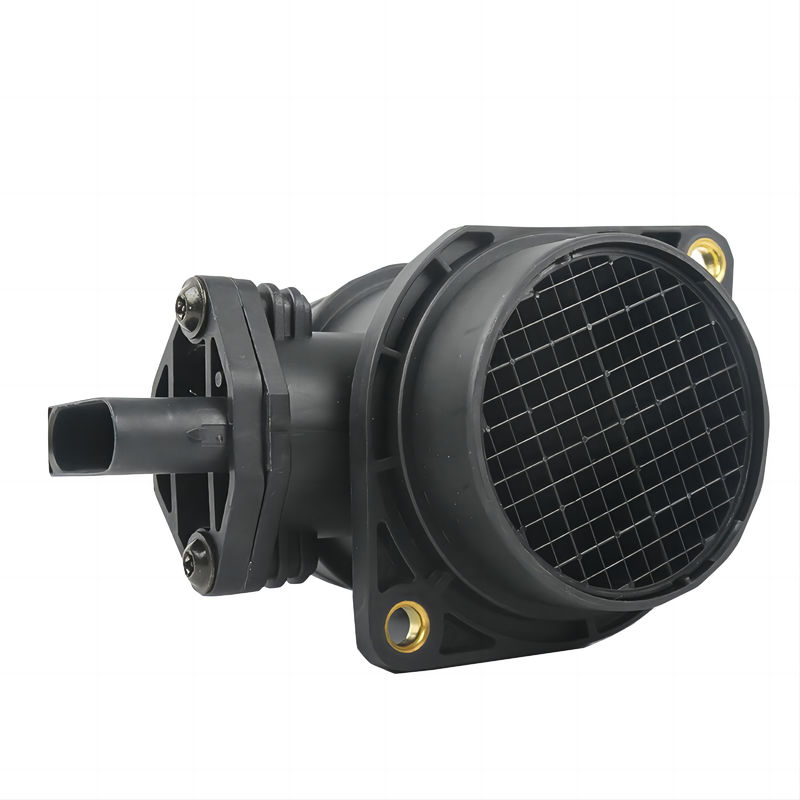

The CAFS1000A Series MEMS air flow sensor, also known as an air flow meter, is a cutting-edge solution for modern automotive electronic control fuel injection systems (EFI). Installed between the air filter and the throttle body, it measures the amount of air entering the engine. This measurement is crucial as the output signal serves as a primary parameter for the fuel injection system in automotive engines, influencing power performance, fuel economy, and emission control.

The CAFS1000A Series sensors utilize the principle that the heat from the sensor is dissipated by incoming air—the greater the airflow, the more heat is dissipated, resulting in a measurable temperature difference. This allows for accurate data processing and determination of airflow direction via a peripheral hybrid processing circuit. By ensuring optimal fuel-air mixture ratios under varying operating conditions, these sensors play a vital role in improving energy efficiency and reducing pollutant emissions in modern vehicles.

With years of application in the automotive and related industries, the CAFS1000A Series has proven its high reliability, stability, accuracy, and cost-effectiveness. Its broad application and promotion potential make it an invaluable component in automotive air flow measurement.

Product Features

  • High Accuracy and Sensitivity: ±2.0% FS accuracy with high sensitivity.
  • Fast Response Time: Customizable response time, default 20 ms.
  • High Reliability and Stability: Proven performance in automotive applications.
  • Wide Flow Range: Suitable for measuring flow rates from 0-60 m/s.
  • Durable and Robust Design: Built with ABS material, providing high protection (IP40) and durability.
  • Wide Temperature Range: Operates effectively from -40°C to 125°C.
  • Humidity Tolerance: Can operate in environments with 0-100% RH.
  • Multiple Output Methods: Analog outputs of 1-5V, customizable to meet specific needs.
  • Customizable Interface: Adaptable to various flow ranges and operating conditions.

Functional Items

Model: CAFS1000A

Performance Parameters

Parameter Value Unit Remarks
Flow Range 0-250 / 320 / 370, etc. Kg/h Customizable
Service Voltage 12VDC, 50mA (or 7 to 24VDC range) VDC
Accuracy ±2.0 % FS
Repetitiveness <0.5 %
Response Time 20 (Default) ms Customizable
Maximum Pressure 0.3 MPa
Output Method Analog outputs of 1-5 V Customizable
Temperature -40~125 °C
Levels of Protection IP40
Calibration Method Air, 20°C, 101.325kPa
Overall Material ABS

Differentiators

The CAFS1000A Series stands out due to its integration of MEMS technology with a high-precision digital processing and calibration circuit (MCU). This ensures real-time acquisition of sensing signals and accurate flow measurements without the need for external calibration. The robust design and material choice (ABS) enhance durability and protection, making it suitable for harsh automotive environments.

The sensor's high accuracy, wide flow range, and fast response time make it an excellent choice for modern EFI systems, ensuring optimal engine performance and emission control. Its customizable output methods and interface allow for flexible integration into various automotive applications, broadening its usability and effectiveness in improving fuel economy and reducing emissions.
