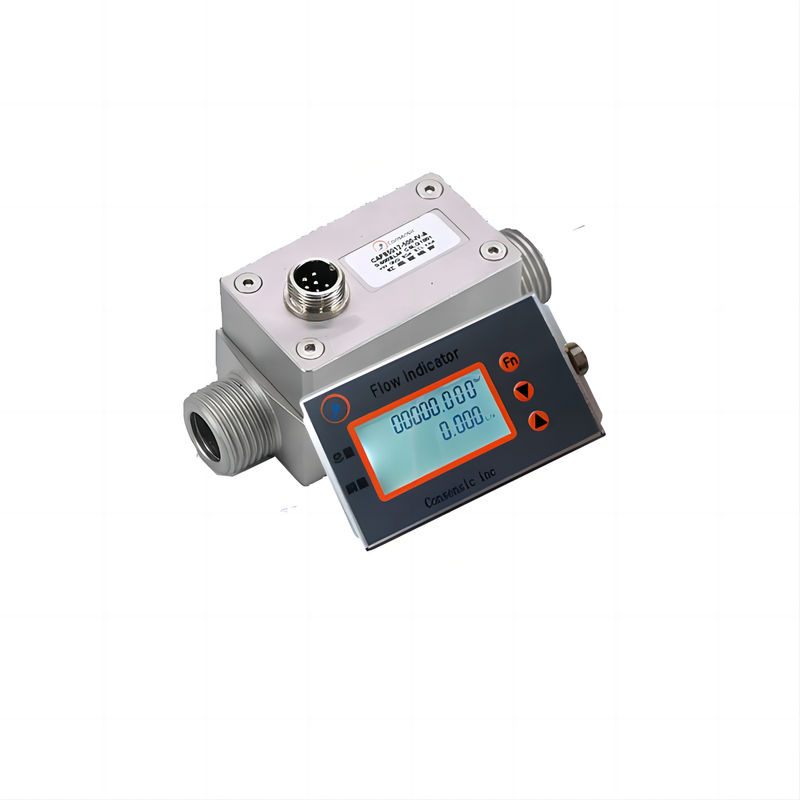

1 To 5V Digital I2C Communication Output Flow Meter Sensor

Product Applications

The CMF5012 Series Gas Mass Flow Meter is a versatile and high-precision instrument ideal for a wide range of applications across various industries:

• Industrial: For precise gas flow measurement and process control in manufacturing and production environments.
• Medical: Used in medical equipment and respiratory devices for accurate gas flow monitoring.
• Petroleum: Essential for flow measurement and monitoring in petroleum extraction and refining processes.
• Instruments: Suitable for laboratory and scientific instruments requiring reliable gas flow measurement.
• Gas: Applicable in gas distribution and management systems for accurate flow rate measurement.
• Chemical: Used in chemical processes and reactions for precise control of gas flow.
• Smelting: Essential for monitoring gas flows in metal smelting and alloy production.
• Food Processing: Applied in food and beverage industries for controlling gas flow in processing and packaging.
• Mechanical and Electrical Equipment: Ideal for use in mechanical systems and electrical equipment requiring gas flow measurement.

Product Overview

The CMF5012 Series is a state-of-the-art digital gas mass flow meter designed for high accuracy and reliability. Utilizing advanced MEMS (Micro-Electro-Mechanical Systems) technology, this series offers robust performance across a variety of measurement scenarios.

Key Features

1. High Accuracy and Stability

• Feature: Accuracy of ±1.5% Full Scale (F.S.)
• Advantage: Delivers precise and reliable gas flow measurements for a broad range of applications.

2. Wide Flow Range

• Feature: Flow Range from 0 to 400 SLPM.
• Advantage: Customizable flow ranges for diverse measurement needs, from low to high gas flow rates.

3. Linear Output with No Temperature Compensation

• Feature: Linear Output (1 to 5 V) and I2C Digital Communication available.
• Advantage: Provides straightforward, accurate data with minimal temperature interference.

4. Quick Response Time

• Feature: Response Time of 65 ms (selectable).
• Advantage: Ensures fast and accurate measurement updates for dynamic processes.

5. Robust Design

• Feature: Solid-State Sensing Core with no fragile surface cavities or films.
• Advantage: Highly durable with resistance to blockage, pressure impacts, and condensation.

6. High Durability and Adaptability

• Feature: Operating Temperature: -20°C to 65°C, Storage Temperature: -40°C to 85°C.
• Feature: Humidity Tolerance: 0-99% RH.
• Advantage: Reliable performance in a variety of environmental conditions.

7. Customizable Options

• Feature: Power Supply Voltage: 8~24 VDC.
• Feature: Maximum Pressure: Up to 0.8 MPa (customizable).
• Feature: Joggle Type: NPT 1/2” (customizable).
• Advantage: Adaptable to specific application requirements and installation conditions.

8. Advanced Communication and Calibration

• Feature: Communication Mode: RS485 (Modbus).
• Feature: Calibration Method: Air, at 20°C and 101.325 kPa.
• Advantage: Provides versatile data communication options and easy calibration.
