Product Details
Place of Origin: WUXI
Brand Name: Consensic
Certification: PTC23041812701C-CN01
Model Number: CMF5019
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline contact or face-to-face discussion can be negotiated
Delivery Time: 3-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram/Alipay/business-to-business
Supply Ability: 1000
Latus Rectum: |
19 |
L: |
130 |
H: |
66 |
Quick Response Time: |
20 Ms Response Time |
Latus Rectum: |
19 |
L: |
130 |
H: |
66 |
Quick Response Time: |
20 Ms Response Time |
communication
1. And RS 485 communication
The communication mode of the flowmeter is RS 485, and there are two protocol modes: (the factory default is B mode)
A. Factory calibration communication protocol, as a stand-alone communication protocol;
B. Modbus Agreement, for the multi-machine communication protocol.
The settings are as, respectively:
Paud 9600 (A) / 9600 (B);
Data bit 8;
Stop bit 1;
Check bit / flow control has no.
Communication protocol see: CAFS 5000 series gas mass flowmeter upper computer Modbus communication protocol
2.4-20 mA, the current signal output
4~20mA Signal output + (LOOP +, brown)
Connect of circuit resistance (this step is the user requiring 4~20mA current signal output
Relationship between external 4~20mA current output circuit voltage and maximum resistance of circuit:
RL(max) = 200Ω
4~20mA ground (LOOP-, black)
| product model | latus rectum | joggle | L | H | W | d | specifications |
|
CMF 5019 |
19 |
3/4’’ |
130 |
66 |
45 |
19 |
200 / 300 / 500 / 600 / 800 / 1000 single Position (L / MIN) |
|
Functional items |

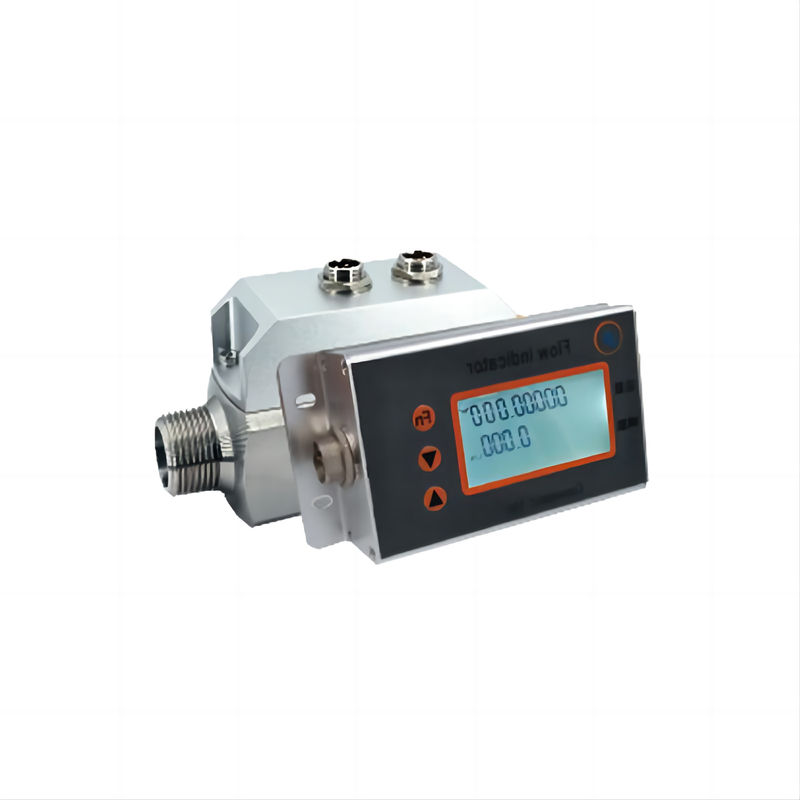

CMF5019 Latus Rectum Flow Meter 20ms Quick Response Time | ||
| performance parameter | unit | remarks | |
| Power Supply Voltage | 8~24VDC ,50mA | VDC | selectable |
| accuracy | ±1.5 | % | FS |
| response time | 65 | ms | selectable |
| maximum pressure | 0.8 | MPa | customizable |
| communication mode | RS 485(MODBUS ) | ||
|
Output method |
Analog outputs of 1-5 | VDC | |
| 4-20mA | apolegamy | ||
| temperature | Medium temperature (-10~65), ambient temperature (-25~85) | ℃ | |
