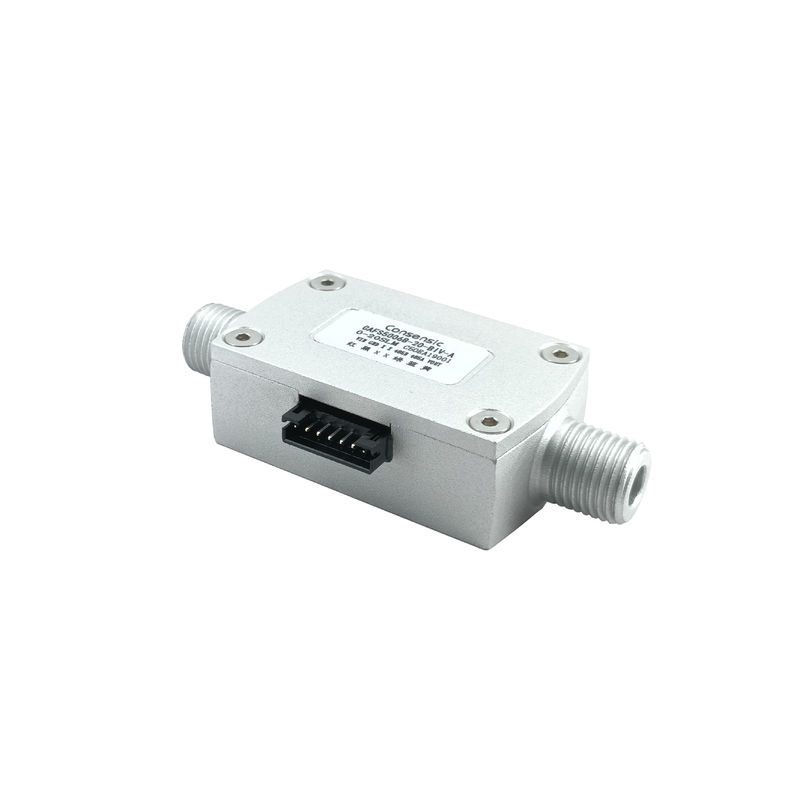

CAFS5006 interface G1/4 Calibration method Air, 0°C, /20°C 101.325kPa

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Model Number: CAFS5006

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price
Highlight:

G1/4 CAFS5006 interface

,

Air CAFS5006 interface

,

101.325kPa CAFS5006 interface

Calibration Method:
Air, 0°C, /20°C 101.325kPa
Interface:
G1/4
Temperature:
Medium Temperature(-10~65)
Output Mode:
Analog Output 1-5V
Methods Of Communication:
485/I2c
Precision:
±1.5%F.S
Calibration Method:
Air, 0°C, /20°C 101.325kPa
Interface:
G1/4
Temperature:
Medium Temperature(-10~65)
Output Mode:
Analog Output 1-5V
Methods Of Communication:
485/I2c
Precision:
±1.5%F.S
CAFS5006 interface G1/4 Calibration method Air, 0°C, /20°C 101.325kPa



Example Calculation

For a CAFS500X sensor with a full range flow of 100 slpm:

If the output voltage (VOUT) is 2.5V: Instantaneous flow rate=(2.5V1V4V)×100slpm=37.5slpmSpecifications

Model Latus Rectum Joggle Long High Width Path diameter Specifications
CAFS5006 6 1/4’’ 83 27 35 6 10 / 20 / 30 / 50 units (L/MIN)



Product Features

  • High Accuracy: ±1.5% FS accuracy ensures precise flow measurements.
  • Linear Output: Provides consistent and reliable linear output without the need for temperature compensation.
  • Long-term Stability: Minimal zero-drift ensures stable performance over time.
  • Quick Response Time: Customizable response time, with a default of 20 ms.
  • Wide Flow Range: Measures flow rates from 0-60 m/s, with strong impact resistance up to 100g.
  • Robust Design: Solid-state sensing core without surface cavities or fragile films, resistant to blockage and pressure impact.
  • Versatile Output Types: Offers analog voltage output (1 to 5V) and digital I2C communication output.
  • Humidity Resistance: Can measure relatively humid gases and withstand condensate water.
  • Operating Temperature Range: Functions effectively from -25°C to 65°C, with a storage temperature range of -40°C to 85°C.
  • Protection Level: IP40 rating for durable performance in harsh conditions.
  • Flow Rate Calculation: Flow rate is calculated using the formula: Flow rate=(VOUT1V4V)×Full range flow ratetext{Flow rate} = left(frac{text{VOUT} - 1V}{4V}right) times text{Full range flow rate}

Functional Items

Model: CAFS5006

Performance Parameters

Parameter Value Unit Remarks
Flow Range 10 / 20 / 30 / 50 slpm Customizable
Power Supply Voltage 8~24VDC, 50mA VDC Selectable
Accuracy ±1.5 % FS
Response Time 20 (Selectable) ms
Maximum Pressure 0.8 MPa Customizable
Communication Mode 485/I2C   Selectable
Output Method Analog outputs of 1-5V V
Temperature Medium temperature (-10~65) °C
Joggle G1/4   Customizable
Levels of Protection IP40
Calibration Method Air, 0℃, and 20℃ 101.325kPa
Overall Material Aluminum alloys (optional stainless steel)
