CAFS5025 Specifications 500 / 600 / 800 / 1000 / 1200 / 1600 L / Min Flow Meter

Name: CAFS5025 Specifications 500 / 600 / 800 / 1000 / 1200 / 1600 L / Min Flow Meter
Brand: Wuxi Consensic Electronic Technology Co., Ltd.
SKU: CAFS5025
Availability: InStock

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Model Number: CAFS5025

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                1600 L / Min  Flow Meter, 1600 L / Min Flow Meter, 1000 L / Min flow meter sensor


Specifications:	500/600/800/ 1000/ 1200/ 1600 Unit (L / MIN)	The Overall Material:	Stainless Steel
Latus Rectum:	25	Joggle:	1’’

Specifications:	500/600/800/ 1000/ 1200/ 1600 Unit (L / MIN)
The Overall Material:	Stainless Steel
Latus Rectum:	25
Joggle:	1’’

CAFS5025 Specifications 500 / 600 / 800 / 1000 / 1200 / 1600 L / Min Flow Meter

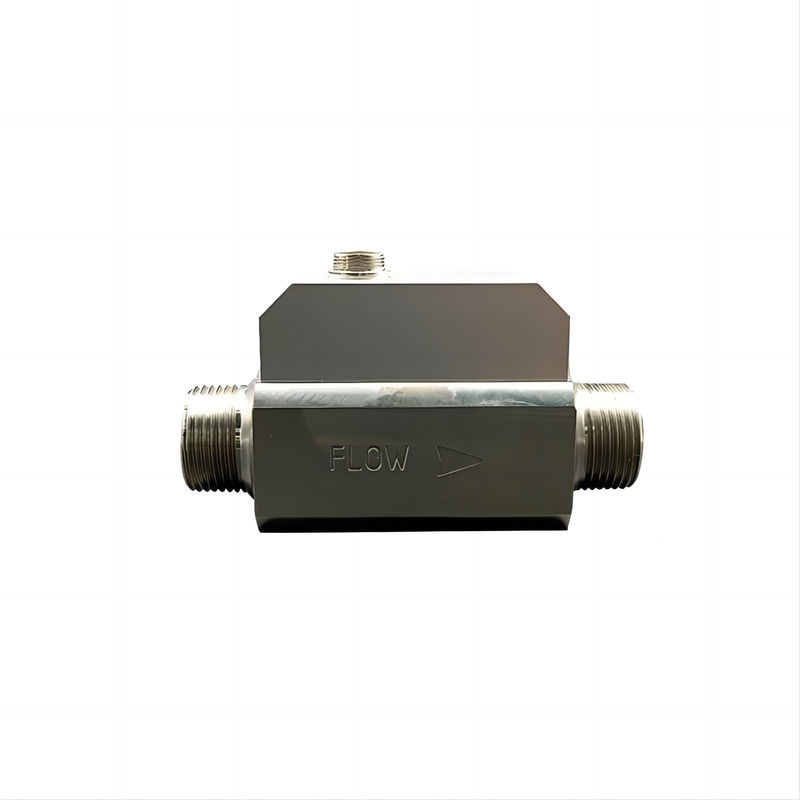

CAFS5025 Specifications 500 / 600 / 800 / 1000 / 1200 / 1600 L / Min Flow Meter 0

The CAFS5025 Series is a state-of-the-art digital gas mass flow meter designed for high-accuracy measurement and versatile applications. This detailed introduction highlights the key features, specifications, and customization options available for the CAFS5025, focusing on what sets this model apart from others in the market.

Customization Options

Flow Range: Choose from standard flow rates (500, 600, 800, 1000, 1200, 1600 L/min). For other ranges, please contact us.
Power Supply Voltage: 8~24 VDC (Specify your preference).
Response Time: Standard 65 ms; inquire for other response times.
Maximum Pressure: Default 0.8 MPa; higher pressures may be available upon request.
Communication Mode: Choose between Analog (1-5 VDC, 4-20 mA) or Digital (RS485 MODBUS).
Material: Standard stainless steel; aluminum alloy available on request.
Joggle: G1” interface (Customizable for specific applications).

Performance Specifications

Feature	CAFS5025 Specifications 500 / 600 / 800 / 1000 / 1200 / 1600 L / Min Flow Meter
Flow Range	500, 600, 800, 1000, 1200, 1600 L/min (Customizable)
Power Supply Voltage	8~24 VDC, 50 mA (Selectable)
Accuracy	±1.5% FS
Repetitiveness	<0.5%
Response Time	65 ms (Selectable)
Maximum Pressure	0.8 MPa (Customizable)
Communication Mode	RS485 (MODBUS)
Output Methods	Analog (1-5 VDC), 4-20 mA, Digital (RS485 MODBUS)
Temperature Range	-25°C to 85°C (Operating), -40°C to 90°C (Storage)
Humidity Range	0 to 100% RH (Resistant to Condensate Water)
Protection Level	IP40
Calibration Method	Air, 20°C, 101.325 kPa
Material	Stainless Steel
