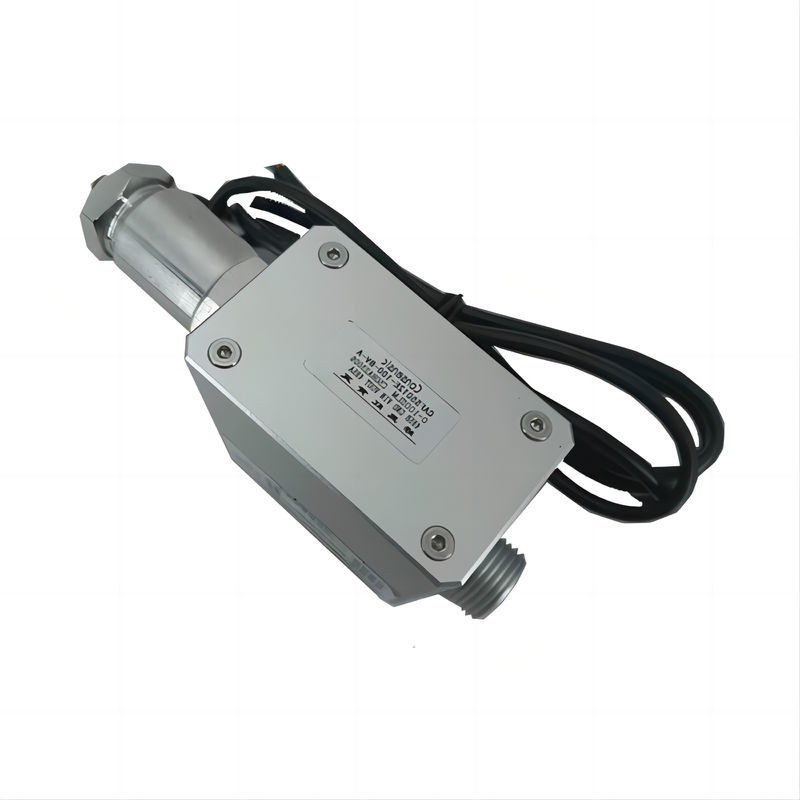

CAFS5012E The overall material Aluminum alloy (customizable stainless steel)

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Certification: PTC23041812701C-CN01

Model Number: CAFS5012E

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price
Highlight:
Flow Range:
0-50,80,100,150,200,250,300,400SLPMCustomizable
Precision:
±1.5%F.S
Material Quality:
Aluminum Alloy (customizable Stainless Steel)
Medium Temperature:
(-10~65)℃
Flow Range:
0-50,80,100,150,200,250,300,400SLPMCustomizable
Precision:
±1.5%F.S
Material Quality:
Aluminum Alloy (customizable Stainless Steel)
Medium Temperature:
(-10~65)℃
CAFS5012E The overall material Aluminum alloy (customizable stainless steel)



Functional Items

Model: CAFS 5012E Series Explosion-Proof Gas Mass Flowmeter



Performance Parameters

Parameter Value Unit Remarks
Flow Range 0-50, 80, 100, 150, 200, 250, 300, 400 SLPM Customizable
Power Supply Voltage 8~24VDC, 50mA VDC
Explosion-Proof Type Ex ia IIC T6 Ga
Accuracy ±1.5 %F.S.
Response Time 10, 20, 65, 150 (factory default 65) ms Customizable
Maximum Pressure 0.8 MPa Customizable
Output Method Analog output 1-5, digital RS485 or I2C VDC Optional
Temperature Medium temperature (-10~65) °C
  Ambient temperature (-25~85) °C
Interface G1/2   Customizable
Calibration Method Air, 20°C, 101.325kPa
Overall Material Aluminum alloy (customizable stainless steel)

Product Introduction

The CAFS 5012E explosion-proof gas mass flowmeter utilizes a microelectromechanical system (MEMS) flow sensing chip, making it ideal for various applications involving clean, relatively dry gas flow measurement and process control. Its unique packaging technology allows the product to accommodate different flow measurement ranges, ensuring high sensitivity, high reliability, stability, and low cost.

The CAFS 5012E incorporates a MEMS flow sensing unit and a high-precision digital processing and calibration circuit (MCU). The integrated Δ-Σ ADC, along with the internal calibration logic and MCU processor, ensures real-time acquisition and accurate flow signals without any external calibration compensation, guaranteeing high-precision flow output. The product also includes a power system and interface system, with a user-friendly digital output communication mode that allows easy access to data information. Its wide range of applications makes it highly versatile.

Product Features

  • Intrinsically Safe and Explosion-Proof: Ensures safe operation in hazardous environments.
  • High Accuracy: ±1.5% F.S. precision with high long-term zero-drift stability.
  • Linear Output and Fast Response: No temperature compensation required, with a fast response time of 10 ms.
  • Wide Flow Range: 0-60 m/s, 100g.
  • Solid-State Sensing Core: Resistant to blockage and pressure impact, suitable for relatively humid gas measurement, and resistant to condensation.
  • Multiple Output Types Available: Analog output (1-5V), I2C, or RS485.
  • Operating Temperature: -15°C to 65°C.
  • Storage Temperature: -25°C to 85°C.
  • Humidity Range: 0 to 100% RH.
