Product Details
Place of Origin: WUXI
Brand Name: Consensic
Model Number: CMF5025
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline contact or face-to-face discussion can be negotiated
Delivery Time: 3-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram/Alipay/business-to-business
Supply Ability: 1000
Quick Response Time: |
20 Ms Response Time |
Output Method: |
Analog Outputs Of 1-5VDC 4-20mA Apolegamy |
Humidity: |
0〜100％RH |
Operating Temperature: |
-25°C To 85°C |
Range: |
0-1600splm(500,800,1000,1200,1600)You Can Choose |
Storage Temperature: |
-40°C To 90°C |
Quick Response Time: |
20 Ms Response Time |
Output Method: |
Analog Outputs Of 1-5VDC 4-20mA Apolegamy |
Humidity: |
0〜100％RH |
Operating Temperature: |
-25°C To 85°C |
Range: |
0-1600splm(500,800,1000,1200,1600)You Can Choose |
Storage Temperature: |
-40°C To 90°C |
| Product Model | Latus Rectum | Joggle | Long | High | Width | Path Diameter | Specifications |
|---|---|---|---|---|---|---|---|
| CMF 5025 | 25 | 1’’ | 136 | 72.2 | 51 | 25 | 500/600/800/1000/1200/1600 L/min |
|
Functional items |

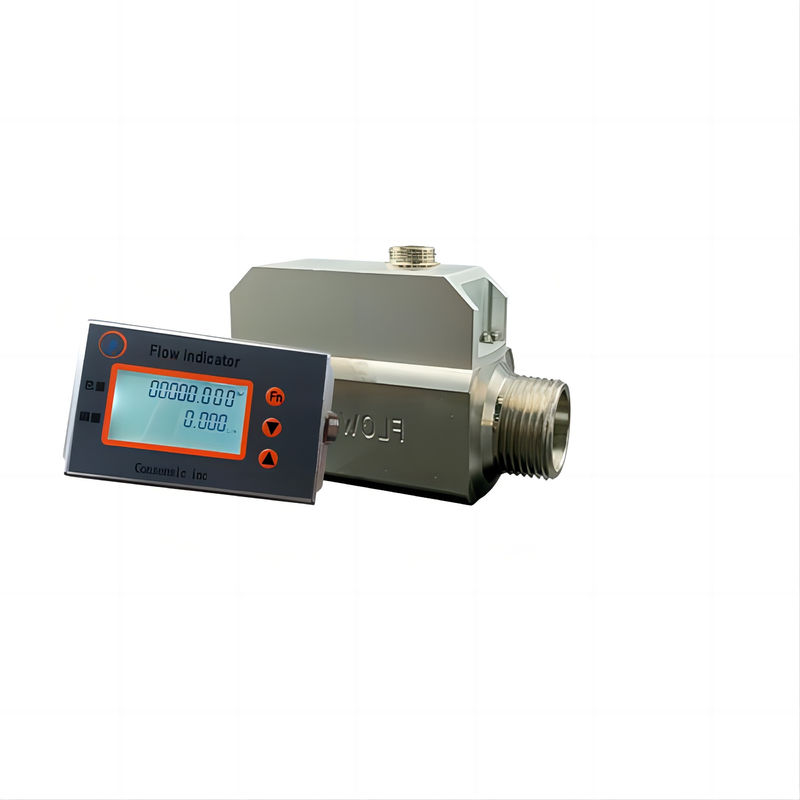

1-5V DC 4-20mA Apolegamy Flow Meter With Analog Output | ||
| performance parameter | unit | remarks | |
| Power Supply Voltage | 8~24VDC ,50mA | VDC | selectable |
| accuracy | ±1.5 | % | FS |
| response time | 65 | ms | selectable |
| maximum pressure | 0.8 | MPa | customizable |
| communication mode | RS 485(MODBUS ) | ||
|
Output method |
Analog outputs of 1-5 | VDC | |
| 4-20mA | apolegamy | ||
| temperature | Medium temperature (-10~65), ambient temperature (-25~85) | ℃ | |
| joggle | G1 | customizable | |
| Calibration method | Air, and the 20℃,101.325kPa | ||
| The overall material | stainless steel | ||
