Product Details
Place of Origin: WUXI
Brand Name: Consensic
Certification: PTC22072602101C-CN01

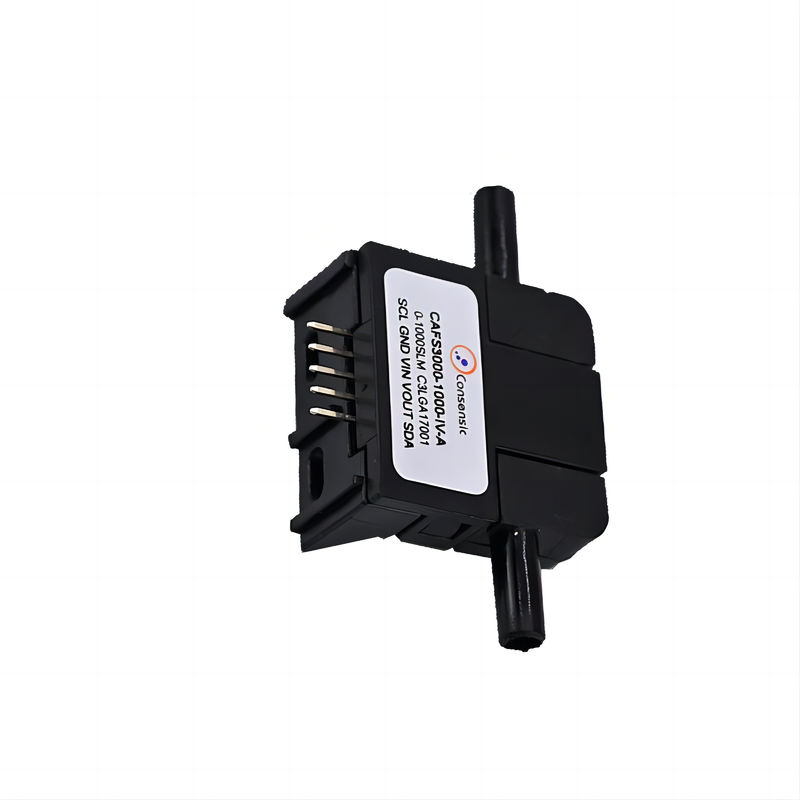

Model Number: CAFS3000
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline conversation or face-to-face discussion
Delivery Time: 3-7 work days
Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability: 999
Quick Response Time: |
1 Ms Response Time |
High Accuracy: |
1.5%F. S Accuracy |
Response Time: |
20~30ms |
Temperature Drift: |
4%0℃ -50℃ |
Quick Response Time: |
1 Ms Response Time |
High Accuracy: |
1.5%F. S Accuracy |
Response Time: |
20~30ms |
Temperature Drift: |
4%0℃ -50℃ |
| Parameter | Min Value | Typical Value | Max Value | Unit | Remarks |
|---|---|---|---|---|---|
| Flow Range | 0 | — | 2000 | sccm | Customizable |
| Service Voltage | 8 | 12 | 24 | V | |
| Current | 15 | 20 | — | mA | |
| Maximum Voltage Output | 4.94 | 5 | 5.02 | V | |
| Zero Point Voltage Output | 0.98 | 1 | 1.02 | V | |
| Accuracy | 1.5 | — | 2 | %FS | |
| Withstand Voltage | 0.3 | — | 0.5 | MPa | Customizable |
| Resolution Ratio | 0.1 | — | — | % | Gamut |
| Response Time | 20 | — | 30 | ms | |
| Zero Drift | — | 0.2 | — | %/Year | Gamut |
| Temperature Drift | — | — | 4 | % | 0°C - 50°C |
| Overall Material | Silicon carbide, epoxy resin, PS, FR4, silicon as sealing material | — | — |
Product
￭ Oxygen generator ￭ Antigas mask and respirator ￭ sprayer ￭ Continuous positive airway pressure ventilation (CPAP) equipment
￭ Delivery of anesthesia ￭ leak detection ￭ spectrometer ￭ mass flow controller ￭ communication system ￭ environmental climate control
