Name: CMF9008 maximum pressure 0.5 (customizable max. 0.8) MPa
Brand: Wuxi Consensic Electronic Technology Co., Ltd.
SKU: CMF9008
Availability: InStock

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Certification: PTC23091116101C-CN01

Model Number: CMF9008

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price

Product Details

Product Description

Highlight:

Repeatable:	0.25	Operating Humidity:	<100%RH (no Icing, No Condensation)
Maximum Pressure:	0.5 (customizable Max. 0.8) MPa	Stimulate The Menstrual Flow:	8mm

Repeatable:	0.25
Operating Humidity:	<100%RH (no Icing, No Condensation)
Maximum Pressure:	0.5 (customizable Max. 0.8) MPa
Stimulate The Menstrual Flow:	8mm

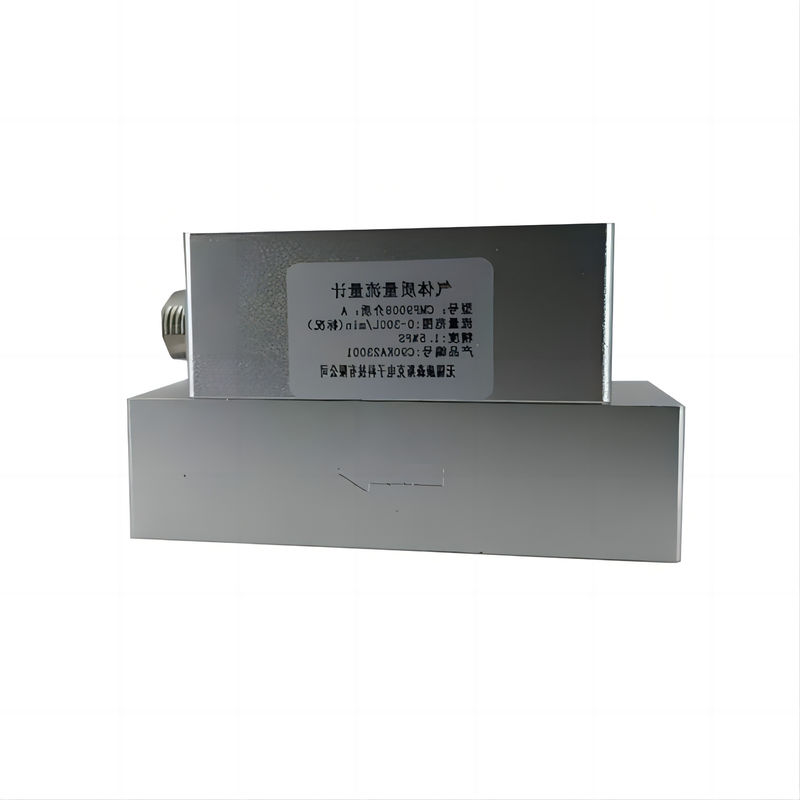

CMF9008 maximum pressure 0.5 (customizable max. 0.8) MPa

Summary Table

Feature	Details
Nominal Diameter	8 mm
Maximum Flow Range	20, 30, 40, 50, 80, 100, 150, 200, 250 ,300SLPM (Customizable)
Power Supply Voltage	7~24VDC, 50mA
Accuracy	±1.5% FS
Repetitiveness	0.25%
Response Time	67 ms (Default), Customizable
Maximum Pressure	0.5 MPa (Customizable up to 0.8 MPa)
Communication Mode	RS485 (MODBUS), 4-20mA Analog Output (Optional)
Display Mode	Instantaneous Flow: SLPM; Cumulative Flow: SL
Temperature Range	Medium: -10°C to 65°C; Ambient: -25°C to 85°C
Humidity	<100% RH (No Ice, No Condensation)
Weight	0.215 kg
Joggle	R3/8” (Customizable)
Calibration Conditions	Air, 20°C, 101.325 kPa
Material Options	Aluminum Alloy (Stainless Steel Optional)

Unique Selling Points for the CMF9008 Series

Feature	Why It Matters
High Accuracy	Ensures precise gas flow measurements for critical applications.
Customizable Flow Range	Flexible options for various measurement requirements.
Advanced Digital Communication	RS485 with MODBUS and optional 4-20mA for versatile system integration.
Selectable Response Time	Customizable response time for specific measurement applications.
High Pressure Resistance	Handles up to 0.8 MPa for demanding environments.
Wide Temperature and Humidity Range	Reliable performance in diverse conditions.
Robust Construction	Durable materials for challenging environments.
User-Friendly Output Options	Analog and digital outputs for easy integration.
Adaptable to
