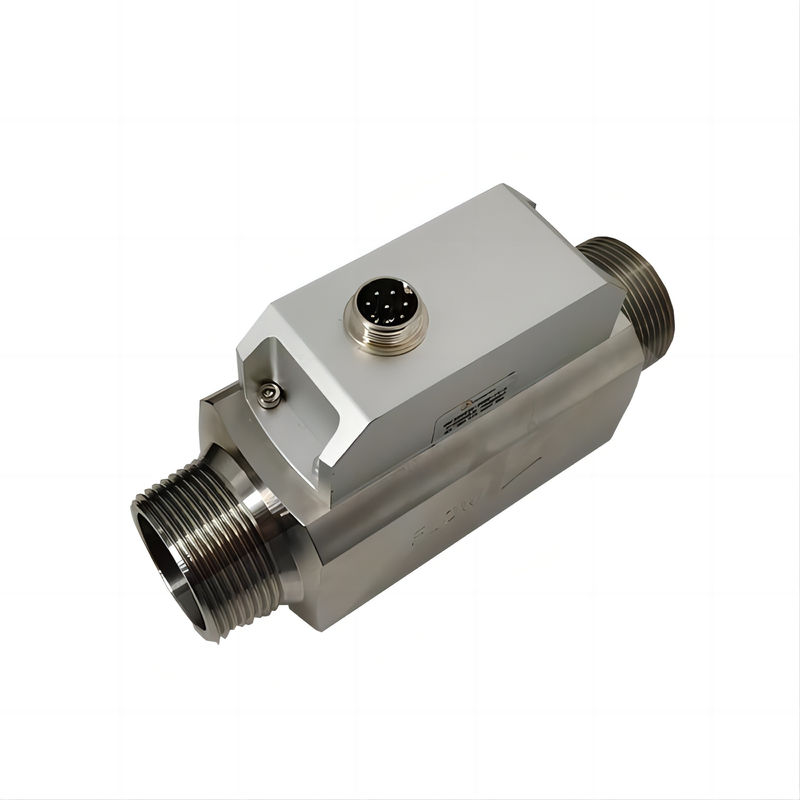

Name: CAFS5032 response time 65 ms selectable communication modeRS 485(MODBUS )
Brand: Wuxi Consensic Electronic Technology Co., Ltd.
SKU: CAFS5032
Availability: InStock

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Model Number: CAFS5032

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price

Product Details

Product Description

Power Supply Voltage:	8~24VDC,50mA VDC Selectable	The Overall Material:	Stainless Steel
Response Time:	65 Ms	Specifications:	0-2000(1000,1200,1600,2000)SLPM

Power Supply Voltage:	8~24VDC,50mA VDC Selectable
The Overall Material:	Stainless Steel
Response Time:	65 Ms
Specifications:	0-2000(1000,1200,1600,2000)SLPM

CAFS5032 response time 65 ms selectable communication modeRS 485(MODBUS )

Key Features and Advantages

0-2000(1000,1200,1600,2000)SLPM

High Accuracy: The CAFS5032 provides ±1.5% FS accuracy for dependable and precise gas flow measurements in diverse applications.
Customizable Response Time: Standard response time of 65 ms with options for customization to match specific measurement requirements.
Flexible Power Supply: Operates with a power supply of 8~24VDC, 50mA, offering flexibility for different system configurations.
Advanced Communication Capabilities: Equipped with RS485 (MODBUS) communication for seamless integration into existing control systems. An optional 4-20mA analog output is also available for additional data acquisition needs.
High Pressure Resistance: Designed to handle up to 0.8 MPa pressure, with customization options for higher pressures to meet specific application requirements.
Wide Temperature and Humidity Range: Functions effectively at medium temperatures of -10°C to 65°C and ambient temperatures of -25°C to 85°C, with a working humidity range of <100% RH (no ice or condensation).
Durable Stainless Steel Construction: Made from stainless steel, ensuring durability and resistance to harsh environmental conditions.
Versatile Output Options: Provides analog output (1-5 VDC) for straightforward integration and 4-20mA output for various measurement and control applications.

Performance Specifications

Feature	CAFS5032 response time 65 ms selectable communication modeRS 485(MODBUS )
Power Supply Voltage	8~24VDC, 50mA
Accuracy	±1.5% FS
Response Time	65 ms (Selectable for Customization)
Maximum Pressure	0.8 MPa (Customizable for Higher Pressures)
Communication Mode	RS485 (MODBUS), Optional 4-20mA Analog Output
Temperature Range	Medium: -10°C to 65°C; Ambient: -25°C to 85°C
Humidity	<100% RH (No Ice, No Condensation)
Output Method	Analog Output 1-5VDC, Optional 4-20mA
Joggle	PT1/4” (Customizable)
Calibration Method	Air, 20°C, 101.325 kPa
Material	Stainless Steel
