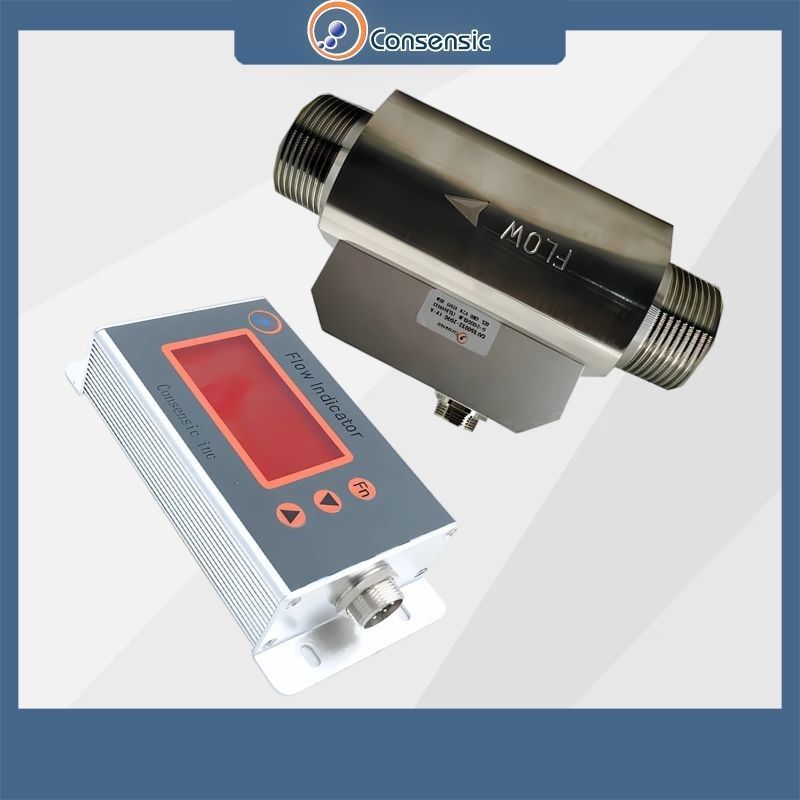

0-2000 1000 1200 1600-2000 SLPM Response Time 65ms Selectable Flow Meter

This product is distinguished by its high accuracy, customizable maximum pressure, and selectable response times, making it versatile for various gas measurement applications in different industries. Its robust construction from stainless steel ensures durability, while the RS 485 communication mode and multiple output methods provide flexibility in integration with existing systems.

1. Reading Instructions: Please read the instructions carefully before using the product.
2. Environmental Suitability: The product is best used in a clean gas environment. It is not suitable for environments with a large amount of dust, oil pollution, or multiphase flow. For use in environments with large quantities of water vapor, please contact the manufacturer in advance.
3. Application Suitability: This product is suitable for gas measurement, monitoring, and control in the automotive, industrial, commercial, and equipment industries. It should not be used in unsuitable environments, which should be strictly controlled.
4. Operational Guidelines: When using or applying the product, strictly follow the relevant operating specifications and safety precautions.
5. Liability Disclaimer: Wuxi Consensic Electronic Technology Co., Ltd. and its branches, subsidiaries, offices, and other subsidiaries are not liable for any damage resulting from improper use of this product. Other matters shall be subject to the sales contract.

Matters Needing Attention

1. Operating Environment: The product can only work normally in the environment defined in this manual.
2. Installation Guidelines: Pay attention to the gas flow mark during installation and perform connection and leakage detection according to corresponding regulations.
3. Impurity Introduction: During use, operations such as online installation of pipes, cleaning of pipes, or other operations that may introduce a large amount of impurities can damage the product.
4. Water Exposure: Exposure to water or immersion in water can cause the sensitive characteristics of the sensor to decline or be damaged.
5. Power Supply Polarity: Reversing the positive and negative electrodes of the power supply can burn out the internal circuit of the sensor, affecting its use.

Performance Parameters

• Range: 0-2000 SLPM (with specific intervals of 1000, 1200, 1600, and 2000)
• Response Time: 65 ms (selectable)
• Power Supply Voltage: 8~24VDC, 50mA (selectable)
• Accuracy: ±1.5% FS
• Maximum Pressure: 0.8 MPa (customizable)
• Communication Mode: RS 485 (MODBUS)
• Output Methods:Analog outputs of 1-5 VDC;4-20mA (optional)
• Temperature:Medium Temperature: -10~65℃;Ambient Temperature: -25~85℃
• Connection Type: PT1/4 (customizable)
• Calibration Method: Calibrated with air at 20℃, 101.325kPa
• Material: Stainless steel
