CPS510 Medical Pressure Sensors Range 10Kpa Power Supply 5V Response Time 3ms

Name: CPS510 Medical Pressure Sensors Range 10Kpa Power Supply 5V Response Time 3ms
Brand: Wuxi Consensic Electronic Technology Co., Ltd.
SKU: CPS510
Availability: InStock

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Model Number: CPS510

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline contact or face-to-face discussion can be negotiated

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                10Kpa Medical Pressure Sensors, 5V Medical Pressure Sensors, 3ms Medical Pressure Sensors


Product Classification:	Medical Flow Sensors	Output:	High-speed 24bit I2C Digital Output
Supply Voltage:	1.8~5.5V	Precision:	±1.5%Span
Long-term Stability:	±0.2%FS	Working Temperature:	-20to-85℃

Product Classification:	Medical Flow Sensors
Output:	High-speed 24bit I2C Digital Output
Supply Voltage:	1.8~5.5V
Precision:	±1.5%Span
Long-term Stability:	±0.2%FS
Working Temperature:	-20to-85℃

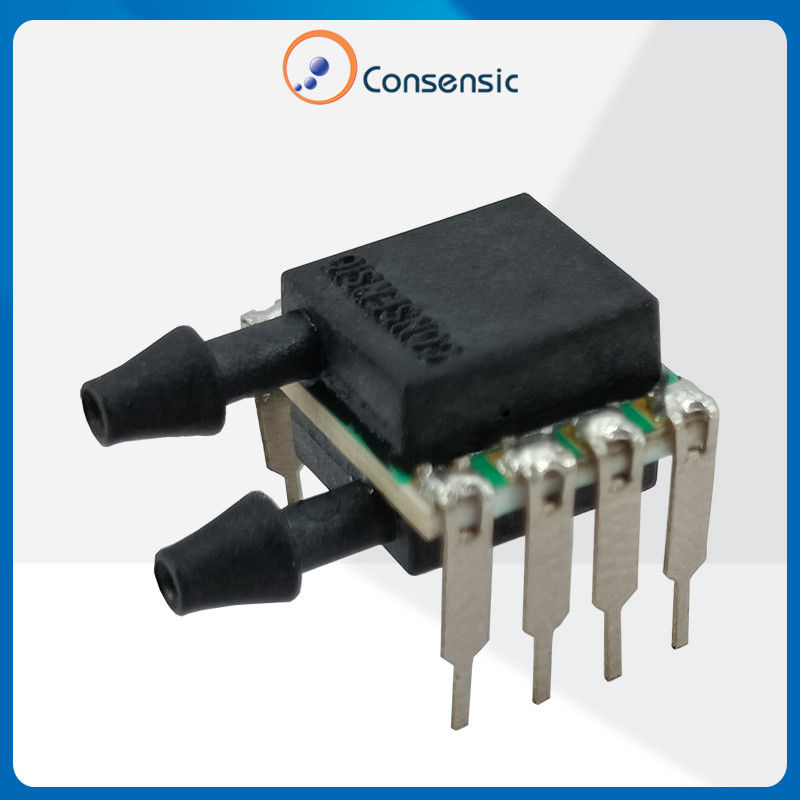

CPS510 Medical Pressure Sensors Range 10Kpa Power Supply 5V Response Time 3ms

Medical Pressure Sensors CPS510 Range 10Kpa Power Supply 5V Response Time 3ms

Product Overview: CPS510 Analog Output Series

The CPS510 is a compact, all-ceramic, PCB-mount pressure sensor designed for high-performance applications. This sensor integrates both the pressure sensing element and a signal conditioning chip that utilizes an advanced algorithm to compensate for temperature variations, ensuring accurate and stable analog output.

Key Features:

Small Form Factor: All-ceramic design allows for a compact size ideal for space-constrained applications.
High Accuracy & Stability: The built-in temperature compensation algorithm ensures precise measurements across varying environmental conditions.
High Sensitivity & Low Cost: The CPS510 provides a highly sensitive output while maintaining cost-effectiveness for a wide range of applications.
Excellent Linearity & Repeatability: Reliable performance with low drift over time, ensuring consistent and repeatable pressure readings.
Integrated Signal Conditioning: The sensor comes with integrated signal conditioning to simplify system integration and reduce external components.

parameter	smallest	typical	maximum	unit	remark
Supply voltage	1.8	5	5.5	V
Supply current		1.7		mA	25℃
Pressure range	0~40			KPa	Gauge or differential pressure
Pressure medium	Dry and non-corrosive gas
Overload pressure	2×
Storage temperature	-40		+125	℃
Operating temperature	-20		+85	℃
Output voltage	10%		90%	VSUPPLY	Supply voltage
Response time		3		ms
Settling time		10		ms
precision			±1.5	%Span
Long-term stability			±0.2%	%FS

CPS510 Medical Pressure Sensors Range 10Kpa Power Supply 5V Response Time 3ms 0
