Product Details
Place of Origin: WUXI
Brand Name: Consensic
Model Number: CPS510
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline contact or face-to-face discussion can be negotiated
Delivery Time: 3-7 work days
Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability: 999
Supply Voltage: |
1.8~5.5V |
Precision: |
±1.5%Span |
Long-term Stability: |
±0.2%FS |
Operating Temperature: |
-20~85℃ |
Supply Voltage: |
1.8~5.5V |
Precision: |
±1.5%Span |
Long-term Stability: |
±0.2%FS |
Operating Temperature: |
-20~85℃ |
Product Overview

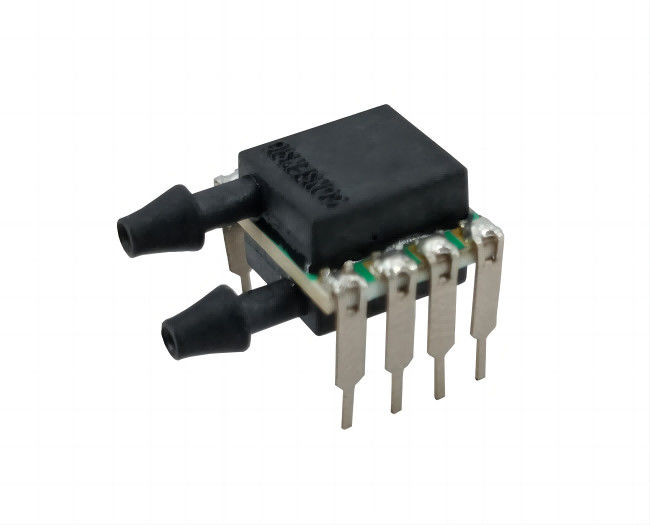

The CPS510 analog output series is a small, all-ceramic, PCB-mount pressure sensor. The CPS510 analog output series features a pressure sensor and signal conditioning chip that uses a unique algorithm to compensate for multiple stages of temperature to provide an accurate, high-level analog output signal proportional to the applied pressure.
The CPS510 analog output series offers low cost, high performance, good linearity, repeatability and stability, and high sensitivity. The on-board package is used to facilitate the actual use of the customer.
| parameter | smallest | typical | maximum | unit | remark |
| Supply voltage | 1.8 | 5 | 5.5 | V | |
| Supply current | 1.7 | mA | 25℃ | ||
| Pressure range | 0~40 | KPa | Gauge or differential pressure | ||
| Pressure medium | Dry and non-corrosive gas | ||||
| Overload pressure | 2× | ||||
| Storage temperature | -40 | +125 | ℃ | ||
| Operating temperature | -20 | +85 | ℃ | ||
| Output voltage | 10% | 90% | VSUPPLY | Supply voltage | |
| Response time | 3 | ms | |||
| Settling time | 10 | ms | |||
| precision | ±1.5 | %Span | |||
| Long-term stability | ±0.2% | %FS | |||
