Fully Compensated Temperature Pressure Sensor In Medical Application

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Model Number: CPS123

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline contact or face-to-face discussion can be negotiated

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price
Highlight:

fully compensated temperature pressure sensor in medical application

,

fully compensated temperature pressure sensor medical

,

700kpa pressure sensor medical

Pressure Accuracy:
<±0.2kpa@25℃
Pressure Range:
30-130kpa,700kpa,1Mpa,1.5Mpa
Dimensions:
2.5x2x1mm
I2C Output: Analog Output:
I2C Output: Analog Output
Pressure Accuracy:
<±0.2kpa@25℃
Pressure Range:
30-130kpa,700kpa,1Mpa,1.5Mpa
Dimensions:
2.5x2x1mm
I2C Output: Analog Output:
I2C Output: Analog Output
Fully Compensated Temperature Pressure Sensor In Medical Application

CPS123 Features fully compensated temperature and pressure output Low power consumption

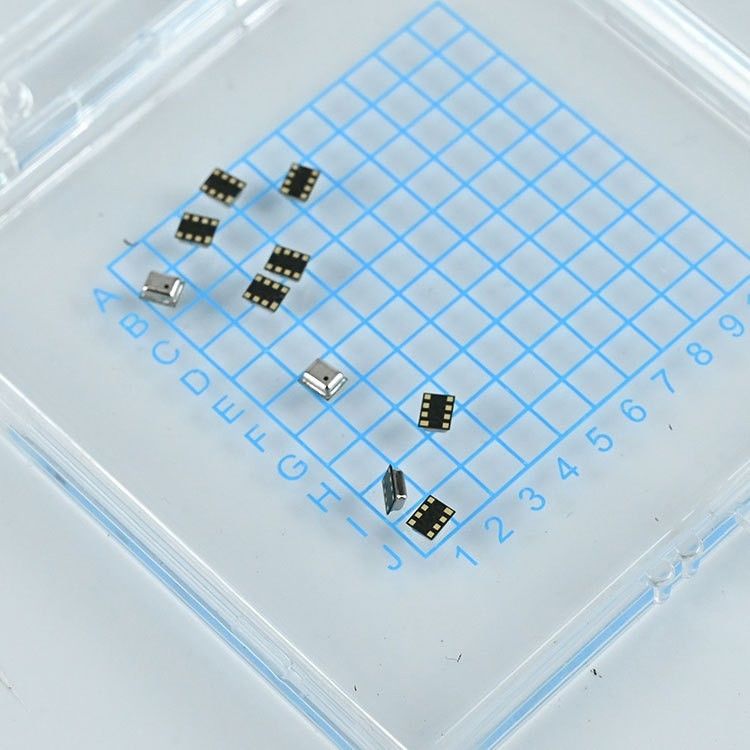

Fully Compensated Temperature Pressure Sensor In Medical Application 1

Physical Characteristics



  • Small Form Factor, 2.5 x 2 x 1mm (w x l x h)
  • LGA Package, 8 Lead



Interfaces

  • I²C TM* Compatible (≤400kHz)



Features

  • Factory Calibrated Pressure and Temperature Sensor
  • Supply Voltage: 2V to 5.5V
  • Current Consumption: <5uA
  • Sleep State Current: <200nA (25°C)
  • Operating Temperature Range: -40°C to +85°C
  • Pressure Accuracy: <±0.2kPa (<±2.0mbar) @ 25°C
  • Temperature Accuracy: ±1.0°C
  • Altitude Resolution Better Than 1.0 meter (50cm) in Active Mode
  • Top Side Sensing Port



Benefits

  • Low Power Consumption. Excellent for Battery and Other Low-Power Applications
  • External Clock not Required
  • High Resistance to Sensing Media



Applications

  • Altimeters
  • Portable and Stationary Barometers
  • Weather Stations
  • GPS Applications
  • Hard Disk Drives(HDD)
  • Industrial Equipment
  • Air Control Systems
  • Vacuum Systems



Overview

The CPS123 SIP (System-in-a-Package) solution comprises of a resistive bridge type pressure sensor and a 24-bit ADC for high resolution and accurate pressure measurements. The fully calibrated pressure and temperature compensated digital output makes the CPS123 solution simple to use. The ADC comprise of an internal calibration logic that provides accurate pressure and temperature measurements to the application via the I²C interface. There is no need to separately download internal calibration coefficients and have the host micro-controller conduct complicated compensation calculations.
