Product Details
Place of Origin: WUXI
Brand Name: Consensic
Certification: PTC23041812701C-CN01

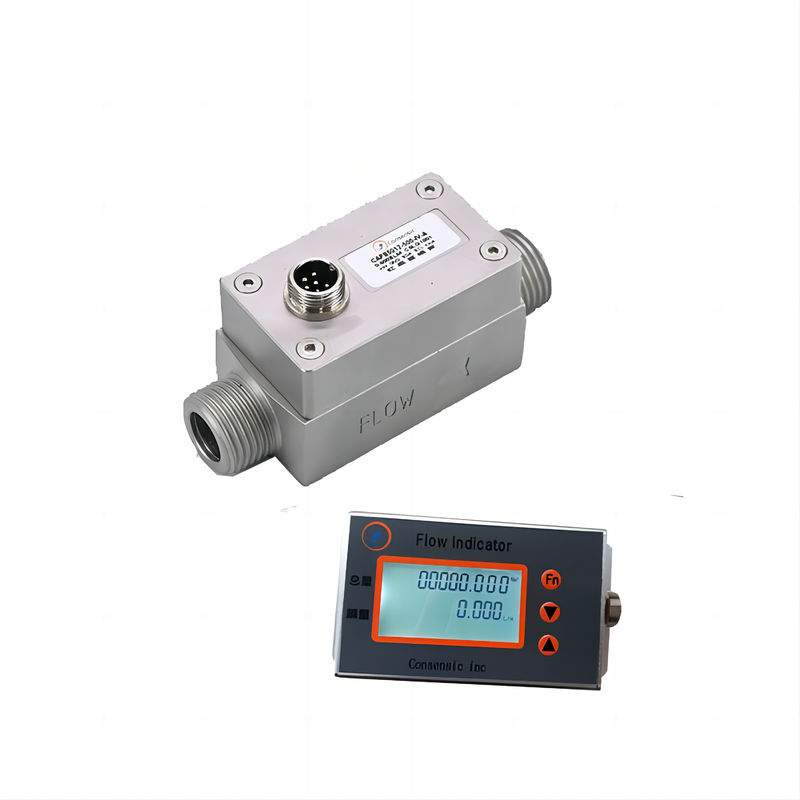

Model Number: CMF5012
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline contact or face-to-face discussion can be negotiated
Delivery Time: 3-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram/Alipay/business-to-business
Supply Ability: 1000
Connection: |
NTP 1/2” |
Measure The Scale Ratio: |
50:1 |
Maximum Pressure: |
0.8 MPa (customizable) |
Response Time: |
65 Ms (selectable Options: 10, 20, 30, 50, 80, 100, 200, Etc.) |
Connection: |
NTP 1/2” |
Measure The Scale Ratio: |
50:1 |
Maximum Pressure: |
0.8 MPa (customizable) |
Response Time: |
65 Ms (selectable Options: 10, 20, 30, 50, 80, 100, 200, Etc.) |
linear output
Flow rate = [(VOUT-1 V) / 4 V] Full range flow rate
For example: CAFS5012 has 100 slpm a full range flow.
When the output voltage is read at 2.5V, the instantaneous flow rate is:
[(2.5V-1V)/4V×100slpm] =37.5 slpm
performance parameter
