Home > products > Flow Sensor > CAFS5008 Specifications 20 / 50 / 100 / 200 / 300 Units L/ Min Joggle G3/8

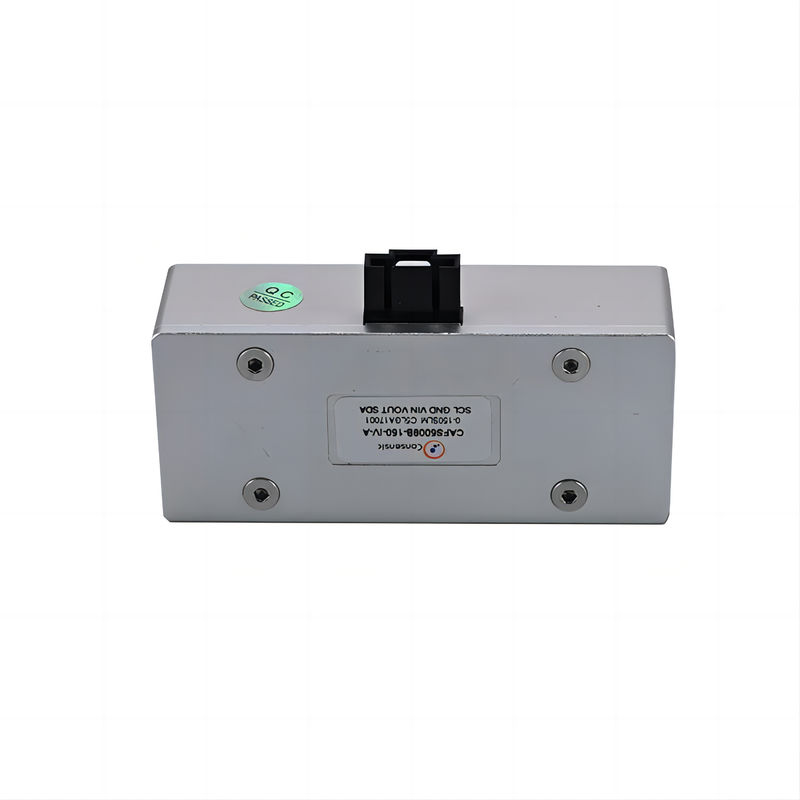

CAFS5008 Specifications 20 / 50 / 100 / 200 / 300 Units L/ Min Joggle G3/8

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Certification: PTC23041812701C-CN01

Model Number: CAFS5008

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price
Highlight:

200 Units L/ Min airflow sensor

,

300 Units L/ Min airflow sensor

,

100 Units L/ Min compressed air flow meter

Joggle:
G3/8
Specifications:
20 / 50 / 100 / 200 / 300 Unit
Range:
8~24VDC
Consumption:
50mA
Joggle:
G3/8
Specifications:
20 / 50 / 100 / 200 / 300 Unit
Range:
8~24VDC
Consumption:
50mA
CAFS5008 Specifications 20 / 50 / 100 / 200 / 300 Units L/ Min Joggle G3/8
Output method Analog outputs of 1-5V V
temperature Medium temperature (-10~65)
joggle G3/8   customizable
levels of protection IP40
Calibration method Air, 0℃, and / 20℃ 101.325kPa
The overall material Aluminum alloys (stainless steel optional)



Performance Parameters

product model latus rectum joggle L H W d specifications
CAFS 5008 8 3/8’’ 83 27 35 8

20 / 50 / 100 / 200 / 300 units

(L/ MIN)

  • Flow Range:Options: 20 / 50 / 100 / 200 / 300 slpm (Standard Liters per Minute);Customizable according to requirements
  • Power Supply Voltage:Range: 8~24VDC;Consumption: 50mA;Selectable according to application needs
  • Accuracy:±1.5% Full Scale (FS)
  • Response Time:20 milliseconds (ms);Selectable for different operational requirements
  • Maximum Pressure:0.8 MPa (MegaPascal);Customizable based on specific use cases
  • Communication Mode:Options: 485/I2C;Selectable based on the communication needs of the system
