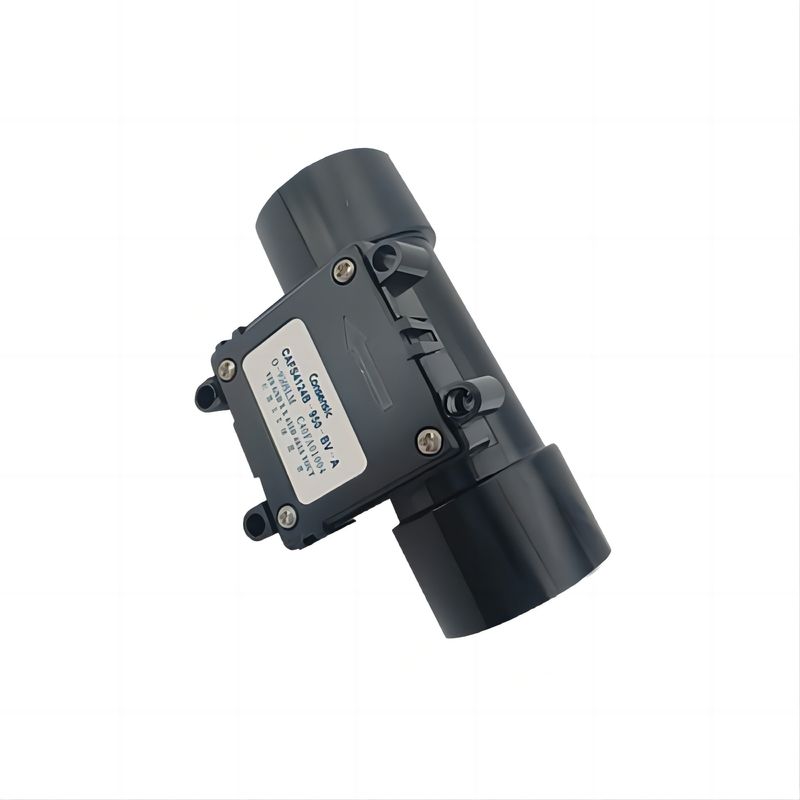

CAFS4000 Storage Temperature -40℃ To 90℃ Humidity Flow Sensor

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Certification: PTC23040404901C-CN01

Model Number: CAFS4000

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price
Highlight:

-40C Flow Sensor

,

90C Flow Sensor

,

20mA airflow meter

Supply Current:
Minimum30maximum20mA
Supply Voltage (5):
Minimum8give Tacit Consent To12maximum24VDC
Zero Point Voltage:
Minimum0.95give Tacit Consent To1maximum1.05VDC
Definition:
Give Tacit Consent To2maximum3%F.S
Supply Current:
Minimum30maximum20mA
Supply Voltage (5):
Minimum8give Tacit Consent To12maximum24VDC
Zero Point Voltage:
Minimum0.95give Tacit Consent To1maximum1.05VDC
Definition:
Give Tacit Consent To2maximum3%F.S
CAFS4000 Storage Temperature -40℃ To 90℃ Humidity Flow Sensor

CAFS4000 Storage Temperature -40℃ To 90℃ Humidity Flow Sensor 0

Product characteristics

Flow range wide 0-300 SLPM

High precision (1.5%F. S accuracy)



Linear output and temperature compensation

Maintain long-term stability with minimal zero-drift



Solid-state sensing core (no surface cavity ring fragile film), resistance to blockage and pressure impact

Analog output (1 to 5 V) (I2C output is also available)



Quick response time (20ms response time)

maximum rating

Operating temperature: -25°C to 85°C

Storage temperature: -40°C to 90°C

Humidity: 0100% RH *

Impact resistance to 100 g

* The sensor is resistant to the condensat
