CMF5019 Flow Sensor Stainless Steel Standard Connection G3/4

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Certification: PTC23041812701C-CN01

Model Number: CMF5019

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline contact or face-to-face discussion can be negotiated

Delivery Time: 3-7 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram/Alipay/business-to-business

Supply Ability: 1000

Get Best Price
Highlight:

Stainless Steel Flow Sensor

,

G3/4 Flow Sensor

,

24V air flow sensor

Overall Material:
Stainless Steel
Calibrated With Air At:
20°C And 101.325 KPa
Voltage Range:
8-24VDC, 50mA (selectable)
Standard Connection:
G3/4 (customizable)
Analog Outputs:
1-5 VDC 4-20 MA (optional)
1-5 VDC 4-20 MA (optional):
65 Ms (selectable)
Overall Material:
Stainless Steel
Calibrated With Air At:
20°C And 101.325 KPa
Voltage Range:
8-24VDC, 50mA (selectable)
Standard Connection:
G3/4 (customizable)
Analog Outputs:
1-5 VDC 4-20 MA (optional)
1-5 VDC 4-20 MA (optional):
65 Ms (selectable)

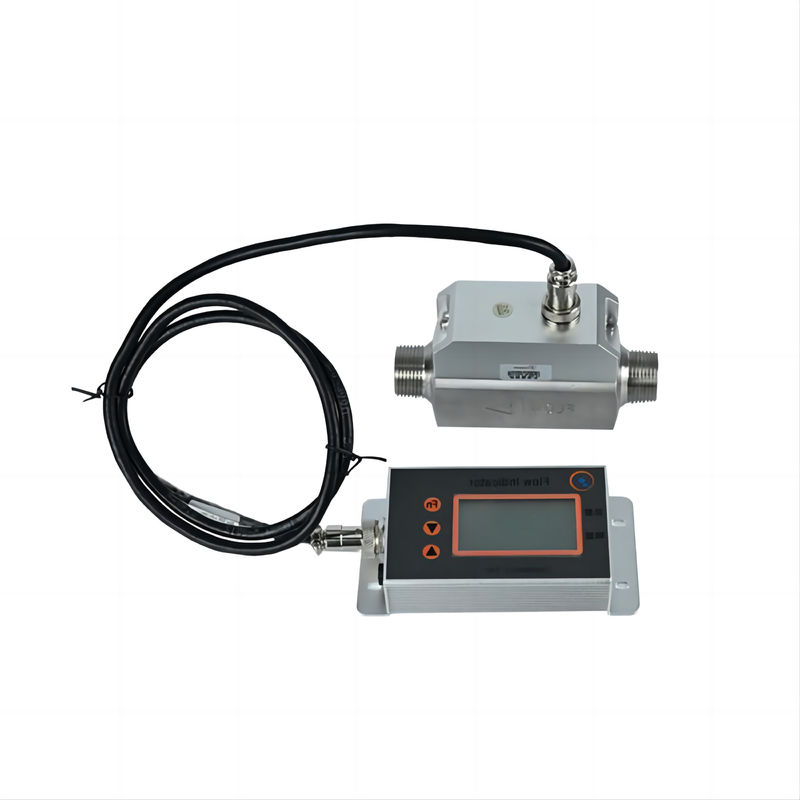

CMF5019 Flow Sensor Stainless Steel Standard Connection G3/4



CMF5019 Flow Sensor Stainless Steel Standard Connection G3/4 0



Features :

■ High accuracy (1.5%F. S accuracy)

■ Linear output and no temperature compensation

■ Maintain long-term stability with minimal zero-drift

■ Quick response time (20 ms response time)

■ Flow range 0-60 m/s, 100g

■ Solid-state sensing core (no surface cavity or fragile film), resistance to blockage and pressure impact

■ Analog output (1-5 V) (with digital RS 485 communication output available)

■ Can be adapted to the relatively humid gas measurement

■ Operating temperature: -25°C to 85°C, storage temperature: -40°C to 90°C, humidity: 0100% RH

■ The sensor is resistant to condensate water



Detailed Technical Info:

  • Power Supply:Voltage range: 8-24VDC, 50mA (selectable)
  • Accuracy:±1.5% FS (Full Scale)
  • Response Time:65 ms (selectable)
  • Maximum Pressure:Standard maximum pressure: 0.8 MPa (customizable)
  • Communication Mode:RS485 (MODBUS)
  • Output Methods:Analog outputs: 1-5 VDC;4-20 mA (optional)
  • Temperature Range:Medium temperature: -10°C to 65°C;Ambient temperature: -25°C to 85°C
  • Connection:Standard connection: G3/4 (customizable)
  • Calibration Method:Calibrated with air at 20°C and 101.325 kPa
  • Material:Overall material: Stainless steel
