CAFS5012E joggle G1/2 Calibration method Air, and the 20℃,101.325kPa

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Certification: PTC23041812701C-CN01

Model Number: CAFS5012E

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price
Highlight:
Joggle:
G1/2customizable
Response Time:
10,20,65,150 (factory Default 65)mscustomizable
Output Method:
Analog Output 1-5, Digital RS485 Or I2C (optional)VDC
Flow Range:
0-400SLPMcustomizable
Calibration Method:
Air, And The 20℃,101.325kPa
Joggle:
G1/2customizable
Response Time:
10,20,65,150 (factory Default 65)mscustomizable
Output Method:
Analog Output 1-5, Digital RS485 Or I2C (optional)VDC
Flow Range:
0-400SLPMcustomizable
Calibration Method:
Air, And The 20℃,101.325kPa
CAFS5012E joggle G1/2 Calibration method Air, and the 20℃,101.325kPa





Describe

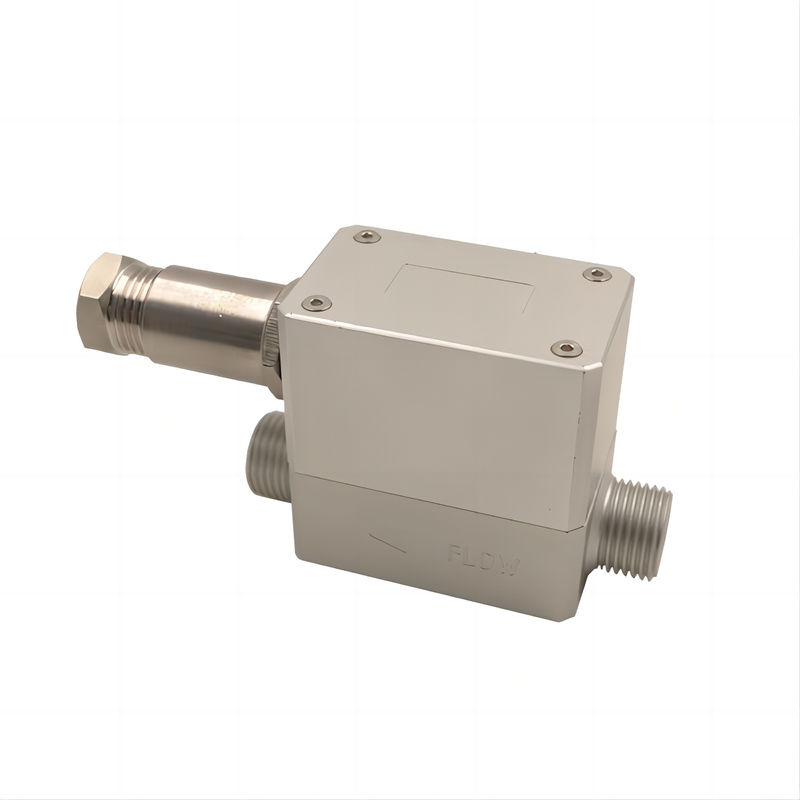

CAFS 5012E Explosion-proof gas mass flowmeter is made of microelectromechanical system (MEMS) flow sensing chip, suitable for various uses of clean, relative, dry gas flow measurement and process control, the unique packaging technology makes the product to meet different ranges of flow measurement, to ensure high sensitivity, high reliability, high Stability and low cost.

CAFS 5012E Is based on MEMS flow sensing unit and high precision digital processing and calibration circuit (MCU). The integrated Δ - Σ A / D converter, the logic circuit with internal calibration function and MCU processor can guarantee the real-time acquisition and the accurate flow signal, without any external calibration compensation to ensure the high-precision flow output; the product adds the power system and interface system; friendly digital output communication mode, the user can easily obtain the corresponding data information and the product application range Very broad.

CAFS5012E



Functional items

CAFS5012E joggle G1/2 Calibration method Air, and the 20℃,101.325kPa
performance parameter unit remarks
Flow range 0-50,80,100,150,200,250,300,400 SLPM customizable
Power Supply Voltage 8~24VDC ,50mA VDC
Explosion-proof type Ex ia IIC T6 Ga
accuracy ±1.5 %F.S.
response time 10,20,65,150 (factory default 65) ms customizable
maximum pressure 0.8 MPa customizable
Output method Analog output 1-5, digital RS485 or I2C (optional) VDC
temperature Medium temperature (-10~65)
Ambient temperature (-25~85)
joggle G1/2   customizable
Calibration method Air, and the 20℃,101.325kPa
The overall material Aluminum alloy (customizable stainless steel)
  1. Safety and Durability:Intrinsically safe and explosion-proof design.Solid-state sensing core without surface cavities or fragile films, enhancing resistance to blockage and pressure impacts
  2. Accuracy and Stability:High accuracy of ±1.5% FS (Full Scale).Excellent long-term stability with minimal zero-drift
  3. Output Characteristics:Linear output with no temperature compensation required.Fast response time of 10 ms
  4. Flow Range and Weight:Capable of measuring flow rates from 0 to 60 m/s.Weight: 100g
  5. Environmental Tolerance:Suitable for relatively humid gas measurements.Resistant to condensate
  6. Output Options:Multiple output types available:RS485.I2C.Analog output: 1-5 V
  7. Temperature and Humidity Range:Operating temperature: -15°C to 65°C.Storage temperature: -25°C to 85°C.Humidity: 0-100% RH (no condensation)

Differentiators:

  • Safety Features: The sensor's intrinsically safe and explosion-proof design makes it suitable for use in hazardous environments, ensuring safety in industrial applications.
  • High Precision and Stability: The sensor provides high accuracy (±1.5% FS) and long-term stability with minimal zero-drift, ensuring reliable and consistent measurements over time.
  • Quick Response Time: With a fast response time of 10 ms, the sensor is ideal for dynamic applications requiring rapid measurement updates.
  • Robust Design: The solid-state sensing core enhances durability by avoiding issues related to surface cavities or fragile films, making it resistant to blockage and pressure impacts.
  • Environmental Versatility: Designed to operate in a wide range of temperatures and high humidity environments, including resistance to condensate, making it suitable for various challenging conditions.
  • Flexible Output Options: The availability of multiple output types (analog, I2C, RS485) provides flexibility for integration with different systems and applications.
  • Compact and Lightweight: Weighing only 100g, the sensor is easy to handle and install, offering convenience without compromising performance.
