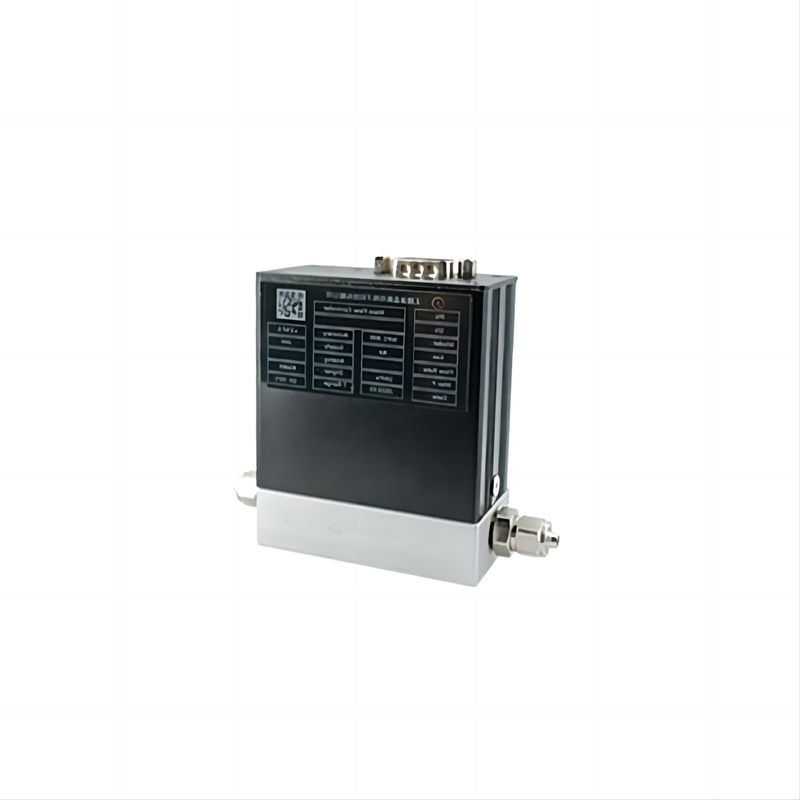

MFC900-P300 Series combination Can be purchased separately and in combination

Contact Information:

• Company Name: Wuxi Consensic Electronic Technology Co., Ltd
• Sales Telephone: 0510-85122279-802(803)
• Address: Room 401, 4th Floor, Building B5, North Gate, Taihu Zhigu Science and Technology Park, No. 86 Dicui Road, Binhu District, Wuxi City, Jiangsu Province
• Website: consensic.com

MFC-P300

Range: 50,100,150,200,250,300SPLM

High reliability and sensitivity

Compact design, easy to install

High precision and superior zero point stability

Ultra fast response time and stability

Wide voltage input, multiple signal output methods

Good repeatability and reproducibility

Equipped with high-end imported proportional solenoid valves

MFC900

Parameter Table

1. Versatile Flow Measurement Range

• Flow Range: Options include 50, 100, 200, 500, 800, 1000 SCCM; 2, 5, 8, 10, 12 SLPM. This wide range caters to diverse applications requiring precise gas flow control across different scales.

2. Electrical and Power Specifications

• Power Supply: Operates on a flexible voltage range of 7-24VDC, drawing 100mA, which is customizable to meet specific power requirements.
• Accuracy: Ensures high precision with an accuracy of ±1.0% Full Scale (FS), essential for accurate gas flow measurement.
• Repetitiveness: Delivers consistent performance with a repeatability of 0.25%, crucial for reliable operations.

3. Response Time and Pressure Handling

• Response Time: Default response time of 67 ms, customizable to suit different application needs, ensuring timely flow adjustments.
• Maximum Pressure: Rated up to 1.0 MPa, accommodating high-pressure applications without compromising performance.

4. Communication and Output Flexibility

• Communication Mode: Utilizes RS485 (MODBUS) protocol for reliable and standard data communication, ensuring compatibility with various industrial systems.
• Output Methods: Provides analog output of 0.5-4.5 VDC and optional LoRa communication, offering flexibility in data transmission and integration with modern IoT systems.

5. Environmental and Physical Specifications

• Temperature Range: Operates effectively within medium temperatures (-10°C to 65°C) and ambient temperatures (-25°C to 85°C), making it suitable for diverse environmental conditions.
• Humidity: Designed to work under conditions of less than 100% RH without ice or condensation, ensuring reliability in various climates.
• Weight: Lightweight at 0.295 kg, allowing for easy installation and handling.

6. Connectivity and Valve Type

• Joggle: Standard NPT 1/8” thread size, customizable to fit specific installation needs.
• Valve Type: Normally closed valve, ensuring safety and control in gas flow management.
• Connect Options: Additional customizable connection options are available to fit specific requirements.

7. Display and Calibration

• Display Modes: Provides instantaneous flow readings in SLPM and cumulative flow in SL, ensuring clear and immediate data visualization.
• Calibration Conditions: Calibrated using air at 20℃ and 101.325 kPa, ensuring accuracy under standard conditions and adaptable for specific calibrations.
