Product Details
Place of Origin: WUXI
Brand Name: Consensic
Certification: PTC23041812701C-CN01
Model Number: CAFS5012
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline conversation or face-to-face discussion
Delivery Time: 3-7 work days
Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability: 999
Measure The Scale Ratio: |
50:1 |
Response Time: |
65 (10,20,30,50,80,100,200, Etc.)msselectable |
Power Supply Voltage: |
8~24VDC,50mA VDC Selectable |
Maximum Pressure: |
0.8MPa Customizable |
Flow Range: |
0-50/100/200/300/400 Slpm Customizable |
Joggle: |
NTP 1/2” |
Measure The Scale Ratio: |
50:1 |
Response Time: |
65 (10,20,30,50,80,100,200, Etc.)msselectable |
Power Supply Voltage: |
8~24VDC,50mA VDC Selectable |
Maximum Pressure: |
0.8MPa Customizable |
Flow Range: |
0-50/100/200/300/400 Slpm Customizable |
Joggle: |
NTP 1/2” |

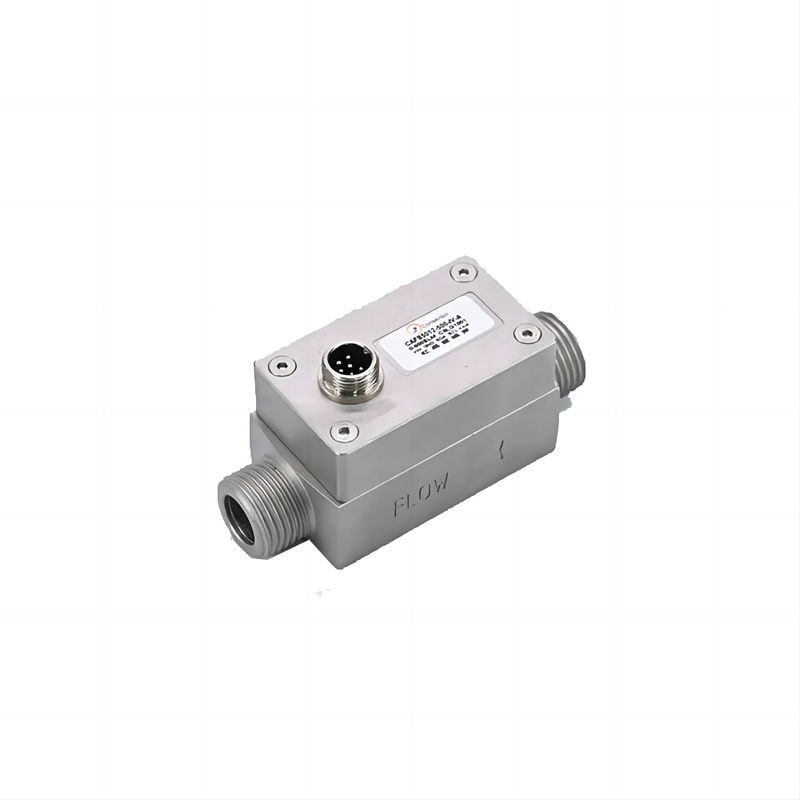

CAFS5012 Flow Sensor Manufacturer Supply Gas Mass Flow Sensor Industrial Flowmeter Product Introduction
CAFS5012 Gas mass flow sensor is using microelectromechanical system (MEMS) flow sensor chip, suitable for various uses of clean, relatively dry small flow gas measurement and process control, unique encapsulation technology makes the product meet the different range of flow measurement, to ensure high sensitivity, high reliability, high stability and low cost.
CAFS5012 Is based on MEMS flow sensing unit and high precision digital processing and calibration circuit (MCU). The integrated Δ - Σ A / D converter, the logic circuit and MCU processor with internal calibration function jointly guarantee the real-time effective collection of sensing signal, obtain accurate flow signal, and process the corresponding compensation algorithm internally, so no external calibration compensation can ensure the high precision traffic output; friendly digital output communication mode, users can easily communicate and obtain the corresponding data information; the product application range is very broad.
Product Characteristics
￭ High accuracy (1.5%F. S accuracy)
￭ Linear output and no temperature compensation
￭ Maintain long-term stability with minimal zero-drift
￭ Quick response time
￭ Flow range 0-60 m/s, 100g
￭ Solid-state sensing core (no surface cavity or fragile film), resistance to blockage and pressure impact
￭ Analog output (1 to 5 V) (digital I2C communication output is available)
￭ Can be adapted to the relatively humid gas measurement
￭ Operating temperature: -20°C to 65°C, storage temperature: -40°C to 85°C, humidity: 099% RH
￭ The sensor is resistant to condensate water
