Product Details
Place of Origin: WUXI
Brand Name: Consensic
Model Number: CPS122
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline contact or face-to-face discussion can be negotiated
Delivery Time: 3-7 work days
Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability: 999
Pressure Relative Accuracy: |
±0.01 KPa (<1 Meter) |
Small Form Factor: |
3 X 3 X 1.2mm (wxl Xh) |
I2C Pull-Up Resistors: |
RPU1 2.2 Ka |
Supply Voltage To GND2: |
VSUPPLY2~5.5V |
Pressure Relative Accuracy: |
±0.01 KPa (<1 Meter) |
Small Form Factor: |
3 X 3 X 1.2mm (wxl Xh) |
I2C Pull-Up Resistors: |
RPU1 2.2 Ka |
Supply Voltage To GND2: |
VSUPPLY2~5.5V |

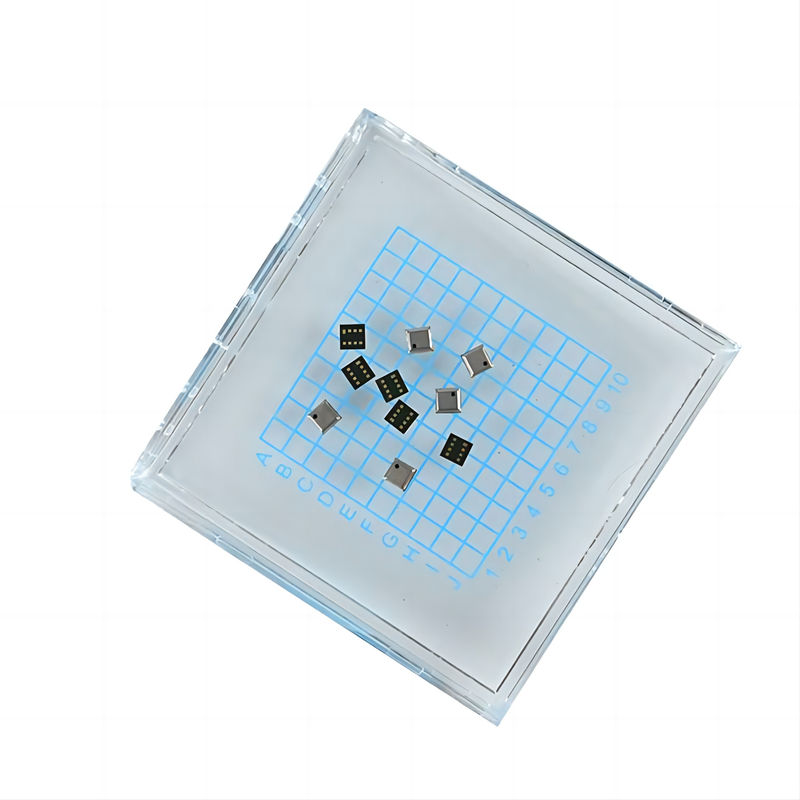

The CPS122 system-in-a-package (SIP) solution is a high resolution pressure sensor that includes a resistive bridge type pressure sensor and a 24-bit ADC. It offers fully calibrated pressure and temperature compensated digital outputs, simplifying integration and use. The sensor includes internal calibration logic, providing accurate measurements via the I²C interface without requiring the host microcontroller to perform complex compensation calculations.
Parameter | Symbol | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|---|
Supply Current | ||||||
- Average | Iavg | VDD = 3V, one conversion per second | 3.95 | µA | ||
- During Conversion | Isc | VDD = 3V, sensor active | 1.5 | mA | ||
- Standby (no conversion) | Iss | VDD = 3V, sensor in standby mode | 0.2 | µA | ||
Analog to Digital Converter | ||||||
- Resolution | rADC | 24 | Bit | |||
I2C Interface | ||||||
- Clock Frequency | FC,I2C | 400 | kHz |
