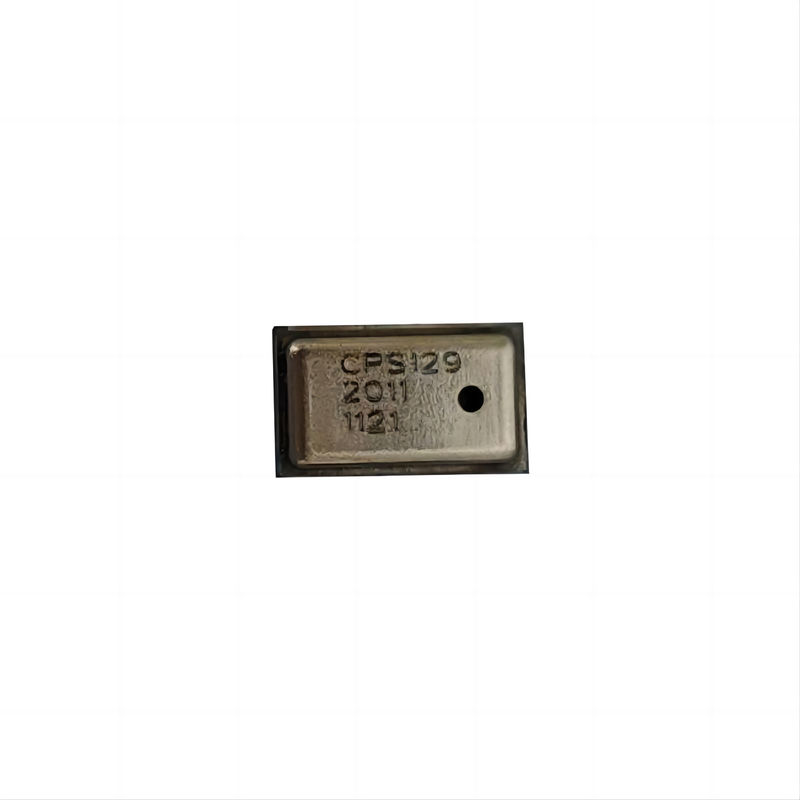

Waterproof Medical Smartphones Wearables Digital Output Pressure Transducer

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Model Number: CPS129

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline contact or face-to-face discussion can be negotiated

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price
Highlight:

Smartphones digital output pressure transducer

,

Wearables digital output pressure transducer

,

Waterproof pressure transducer digital output

Supply Voltage:
V To 5.5V(3V @typical)
Sleep State Current Consumption:
<200nA (25°C)
Storage Temperature:
TSTOR-60~150°C
Resolution:
RADC24Bit
Supply Voltage:
V To 5.5V(3V @typical)
Sleep State Current Consumption:
<200nA (25°C)
Storage Temperature:
TSTOR-60~150°C
Resolution:
RADC24Bit
Waterproof Medical Smartphones Wearables Digital Output Pressure Transducer

CPS129 Supply Voltage: 2V to 5.5V(3V @typical) Sleep State Current Consumption: <200nA (25°C)



PARAMETER CONDITIONS MIN TYP MAX UNITS
Soldering Peak Temperature

Less than 30 seconds

(JEDEC-STD-020 Standard)

    260 °C

Applications

  • waterproof design
  • Medical application
  • Smartphones
  • Wearables
  • Altimeters
  • Portable and Stationary Barometers
  • Weather Stations
  • GPS Applications
  • Hard Disk Drives(HDD)
  • Industrial Equipment
  • Air Control Systems
  • Vacuum Systems



Overview

The CPS129 system-in-a-package (SIP) solution comprises of aresistive bridge type pressure sensor and a 24-bit ADC for high resolution and accurate pressure measurements. The fully calibrated pressure and temperature compensated digital output makes the CPS129 solution simple to use.The CPS129includes internal calibration logic that provides accurate pressure and temperature measurements to the application via the I²C interface.There is no need to separately download internal calibration coefficients and have the host microcontroller perform complicated compensation calculations.



Physical Characteristics

  • Small Form Factor, 3 x 5 x 1.2mm (w x l x h)
  • LGA Package, 8 Lead
  • Top Side Sensing Port
