CAFS1000A Measure the channel cover O-ring seal Connect the plug

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Model Number: CAFS1000A

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price
Highlight:

CAFS1000A Measure Plug

,

CAFS1000A Measure Channel Cover

Circuit:
Microsensor Circuit
Sealing Ring:
O-ring Seal
Plug:
Connect The Plug
High Precision:
±2.0%F.S
Output Mode:
Analog Voltage Output
Operating Temperature:
-40°C~125°C
Humidity:
0〜100%RH
Storage Temperature:
-40°C To 125°C
Circuit:
Microsensor Circuit
Sealing Ring:
O-ring Seal
Plug:
Connect The Plug
High Precision:
±2.0%F.S
Output Mode:
Analog Voltage Output
Operating Temperature:
-40°C~125°C
Humidity:
0〜100%RH
Storage Temperature:
-40°C To 125°C

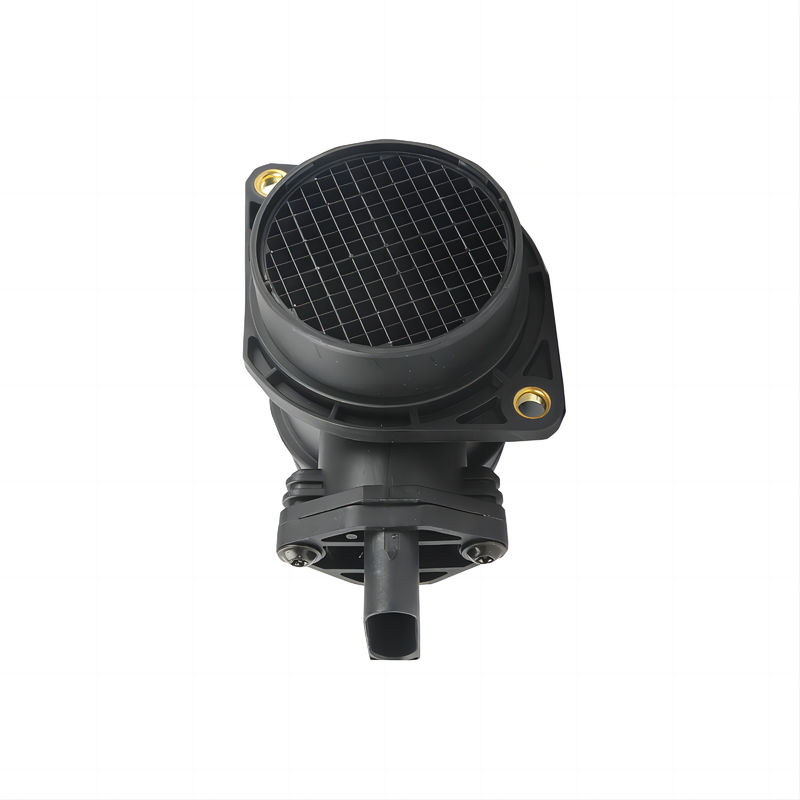

CAFS1000A Measure the channel cover O-ring seal Connect the plug

Introduction of the CAFS1000A Measure the channel cover O-ring seal Connect the plug

CAFS1000A Measure the channel cover O-ring seal Connect the plug is a sophisticated device designed for accurate measurement of air flow in various applications. It incorporates advanced features to ensure high precision, reliability, and adaptability in different environments. Below is a detailed overview of its components, performance parameters, and key differentiators.



Components of the Traffic Module:

  1. Measure the Channel Cover: Provides a secure enclosure for the airflow measurement channel, ensuring accurate readings.
  2. Microsensor Circuit: The core component that detects and measures changes in airflow with high sensitivity.
  3. Assembly Board: Houses the electronic components and connects them efficiently.
  4. Sensor Processing Circuit: Processes the raw data from the microsensor and converts it into usable information.
  5. Connect the Plug: Facilitates easy and secure electrical connections.
  6. O-Ring Seal: Ensures airtight sealing to prevent leakage and maintain measurement accuracy.

Air Flowmeter Overall Structure:

  1. Core Pulling Module: The central unit that houses the microsensor and related components.
  2. Airflow Direction: Ensures proper alignment and direction of airflow through the sensor for accurate measurement.
  3. Air Filter: Filters the incoming air to remove particulates and ensure clean airflow through the sensor.

Functional Items and Performance Parameters:

Performance Parameter Unit Remarks
Flow Range 0-250 / 320 / 370, etc Kg/h
Service Voltage 12VDC, 50mA (or 7 to 24 VDC range) VDC
Accuracy ±2.0 % FS
Repeatability <0.5 %
Response Time 20 ms (customizable)
Maximum Pressure 0.3 MPa
Output Method Analog outputs of 1-5 V V (customizable)
Temperature Range -40~125 °C
Levels of Protection IP40
Calibration Method Air at 20°C, 101.325kPa
Material ABS
