Product Details
Place of Origin: WUXI
Brand Name: Consensic
Certification: PTC23041812701C-CN01

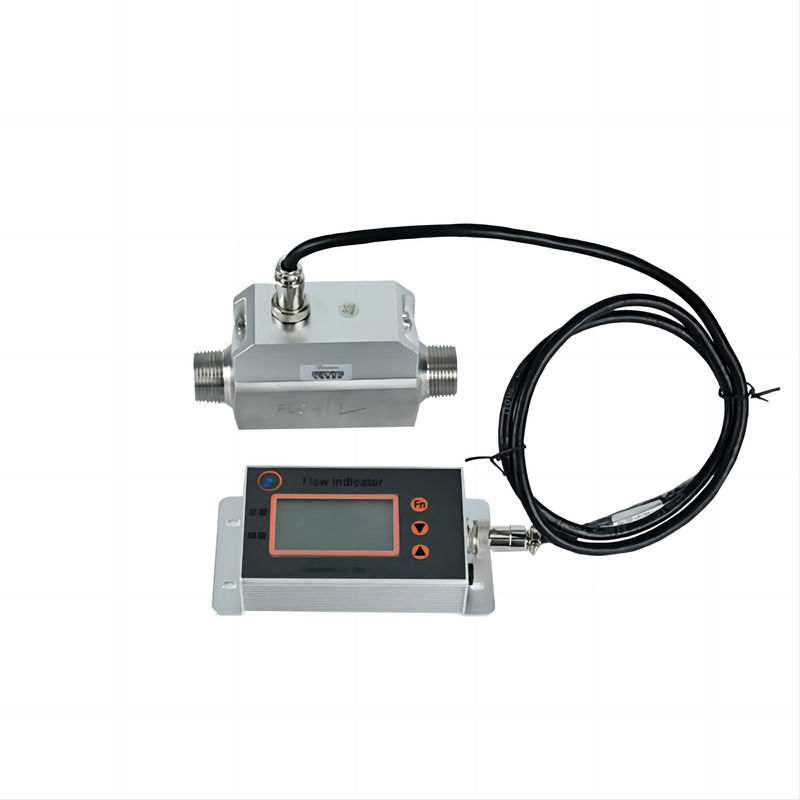

Model Number: CMF5019
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline contact or face-to-face discussion can be negotiated
Delivery Time: 3-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram/Alipay/business-to-business
Supply Ability: 1000
Calibration Method: |
Air, And The 20℃,101.325kPa |
Temperature: |
Medium Temperature (-10~65), Ambient Temperature (-25~85)℃ |
Maximum Pressure: |
0.8MPacustomizable |
Measuring Range: |
200,300,500,600,800,1000splm Optional |
Calibration Method: |
Air, And The 20℃,101.325kPa |
Temperature: |
Medium Temperature (-10~65), Ambient Temperature (-25~85)℃ |
Maximum Pressure: |
0.8MPacustomizable |
Measuring Range: |
200,300,500,600,800,1000splm Optional |
It seems like you're providing specifications and performance parameters for the CMF 5000 Series Flow Controller and want to emphasize their unique features and capabilities. Here's a revised version highlighting the key points:
---
Performance Specifications
Functional Items:
Power Supply Voltage:8~24VDC, 50mA (Selectable)
Accuracy: ±1.5% Full Scale (FS)
Response Time: 65 ms (Selectable)
Maximum Pressure: 0.8 MPa (Customizable)
Communication Mode: RS 485 (MODBUS)
Output Method:
Analog Outputs: 1-5 VDC, 4-20mA (Selectable)
Temperature: Medium (-10~65°C), Ambient (-25~85°C)
Connection: G3/4 (Customizable)
Calibration Method: Air, 20°C, 101.325 kPa
Material: Stainless Steel
Linear Output Formula:
Flow Rate Formula: [(VOUT - 1V) / 4V] × Full Range Flow Rate
Example: For CAFS 5019AV with a full range flow of 1000 slpm and VOUT at 2.5V:
Flow Rate = [(2.5V - 1V) / 4V] × 1000 slpm = 375 slpm
Differential Features:
High precision with ±1.5% FS accuracy.
Fast response time of 65 ms for real-time monitoring.
Versatile power supply voltage range of 8~24VDC for flexibility.
Customizable maximum pressure up to 0.8 MPa to suit various applications.
Dual analog output options (1-5 VDC, 4-20mA) for compatibility.
Robust stainless steel construction ensures durability.
Adaptable to different environmental conditions with wide temperature ranges.
Easy calibration method using air at standard conditions.
Seamless communication via RS 485 (MODBUS) protocol for data exchange.
These features make the CMF 5000 Series Flow Controller stand out in terms of accuracy, reliability, and adaptability to diverse industrial settings.
