Product Details
Place of Origin: WUXI
Brand Name: Consensic
Certification: PTC23041812701C-CN01
Model Number: CMF5019
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline contact or face-to-face discussion can be negotiated
Delivery Time: 3-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram/Alipay/business-to-business
Supply Ability: 1000
The Overall Material: |
Stainless Steel |
Calibration Method: |
Air, And The 20℃,101.325kPa |
Temperature: |
Medium Temperature (-10~65), Ambient Temperature (-25~85)℃ |
Communication Mode: |
RS 485(MODBUS ) |
Maximum Pressure: |
0.8MPacustomizable |
Measuring Range: |
200,300,500,600,800,1000splmOptional |
The Overall Material: |
Stainless Steel |
Calibration Method: |
Air, And The 20℃,101.325kPa |
Temperature: |
Medium Temperature (-10~65), Ambient Temperature (-25~85)℃ |
Communication Mode: |
RS 485(MODBUS ) |
Maximum Pressure: |
0.8MPacustomizable |
Measuring Range: |
200,300,500,600,800,1000splmOptional |
Flow rate = [(VOUT-1 V) / 4 V] Full range flow rate
For example: CAFS 5019AV has 1000 slpm a full range flow. When the output voltage is 2.5V to read, the instantaneous flow rate is
[(2.5V-1V)/4V × 1000slpm ] =375 slpm
Flow rate = [(VOUT-1 V) / 4 V] Full range flow rate
|
Functional items |

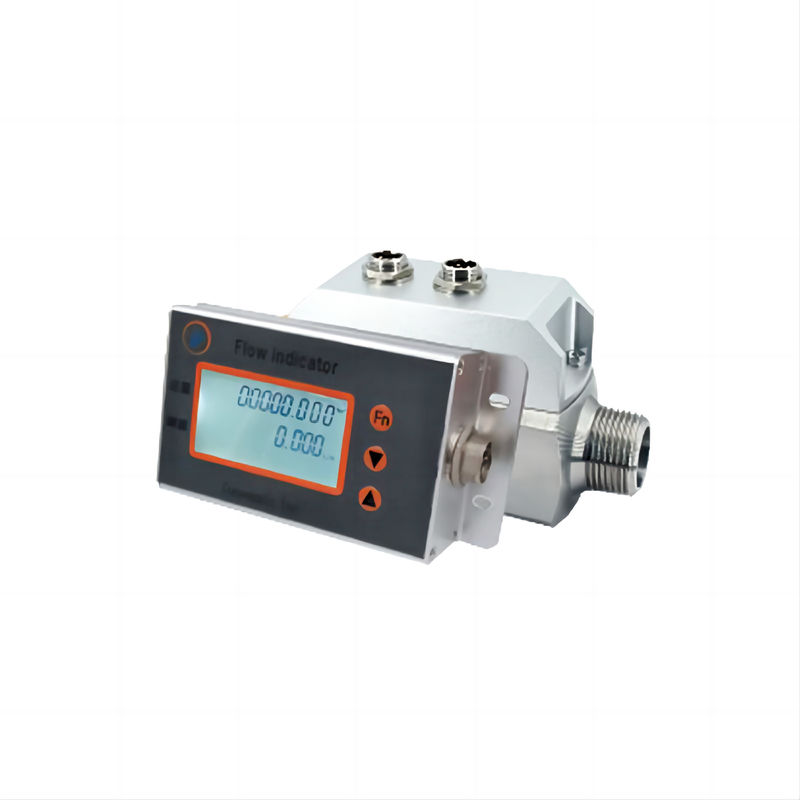

CMF5019 Flow Range 0-60 M/S Medical Flow Sensors |
||
| performance parameter | unit | remarks | |
| Power Supply Voltage | 8~24VDC ,50mA | VDC | selectable |
| accuracy | ±1.5 | % | FS |
| response time | 65 | ms | selectable |
| maximum pressure | 0.8 | MPa | customizable |
| communication mode | RS 485(MODBUS ) | ||
|
Output method |
Analog outputs of 1-5 | VDC | |
| 4-20mA | apolegamy | ||
| temperature | Medium temperature (-10~65), ambient temperature (-25~85) | ℃ | |
| joggle | G3/4 | customizable | |
| Calibration method | Air, and the 20℃,101.325kPa | ||
| The overall material | stainless steel | ||
