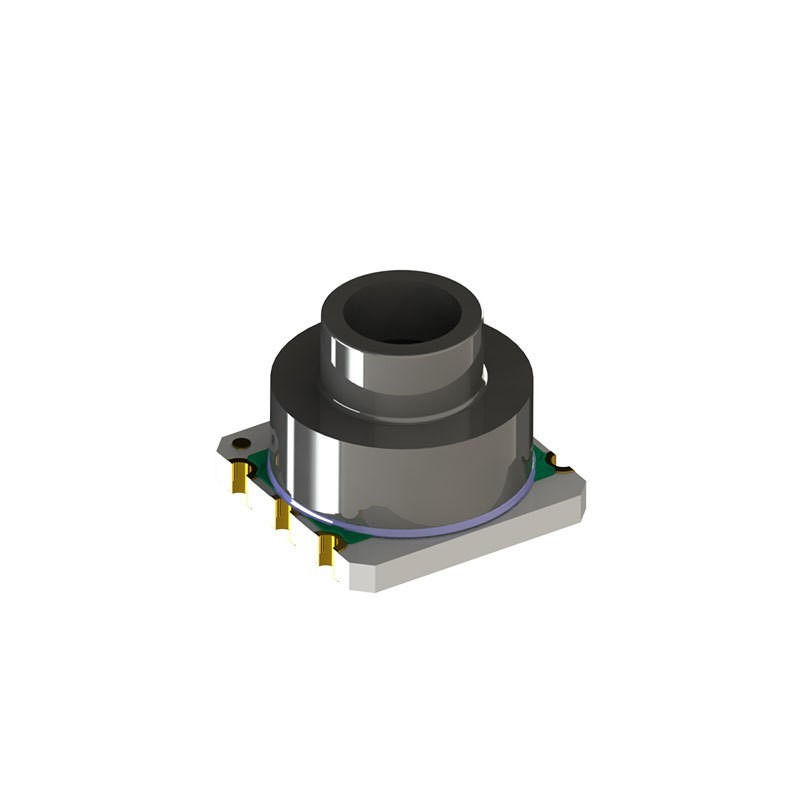

CPS135B High Precision Digital Output Pressure Sensor Altimeter
CPS135B High Precision Digital Output Pressure Sensor Altimeter
CPS135B High Precision Digital Output Pressure Sensor Altimeter

CPS135B High Precision Digital Output Pressure Sensor Altimeter

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Model Number: CPS135B

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price

Product Details

Product Description
Highlight:

High Precision digital output pressure transducer

,

3.5mm digital output pressure transducer

,

Altimeter pressure transducer digital output

Accuracy:
±0.3kPa @ 25°C
Applicable Products:
Altimeter, Portable And Fixed Barometer, Fire Extinguisher, Meteorological Station, Navigation, Pressure Monitoring Wearable Devices (waterproof 100 Meters), Smart Homes, Instruments, Industrial Electronics, Instruments, Vacuum Pumps, Air Pumps, Pressure
Supply Voltage:
3
Operation Temperature:
85
Packaging/Housing:
SMD6
Size:
4.5x4.5x3.5mm
Accuracy:
±0.3kPa @ 25°C
Applicable Products:
Altimeter, Portable And Fixed Barometer, Fire Extinguisher, Meteorological Station, Navigation, Pressure Monitoring Wearable Devices (waterproof 100 Meters), Smart Homes, Instruments, Industrial Electronics, Instruments, Vacuum Pumps, Air Pumps, Pressure
Supply Voltage:
3
Operation Temperature:
85
Packaging/Housing:
SMD6
Size:
4.5x4.5x3.5mm
CPS135B High Precision Digital Output Pressure Sensor Altimeter



PART NUMBER OUTPUT MODE OPERATION MODE PACKAGE
CPS135B I2C Sleep 6-Lead SMD

SALES and CONTACT INFORMATION sales@consensic.com

www.consensic.com


China

Wuxi Consensic Electronics Co., Ltd.

No.86,Dicui Road,B5 Building,

Fourth Floor,Room 401,

Wuxi, Jiangsu Province, 214072

Ph: +86 510.85122279

Fax: +86 510.85122259



Benefits

  • Low Power Consumption: Ideal for battery-operated and other low-power applications, enhancing energy efficiency.
  • No External Clock Required: Simplifies the design and reduces component count.
  • High Resistance to Sensing Media: Suitable for a variety of environments and applications without compromising accuracy or durability.

Features

  • Factory Calibrated: The sensor is pre-calibrated for both pressure and temperature, ensuring accuracy and saving time in the setup process.
  • Supply Voltage: Operates within a range of 2V to 5.5V, with a typical voltage of 3V, providing flexibility in different power scenarios.
  • Current Consumption: Very low power usage with <5µA for one measurement, and an ultra-low sleep state current of <200nA at 25°C, prolonging battery life.
  • Operating Temperature Range: Functional in a wide temperature range from -40°C to +85°C, making it versatile for various environmental conditions.
  • Pressure Accuracy: High precision with an accuracy of ±0.3kPa (±3.0mbar) at 25°C, ensuring reliable pressure measurements.
  • Temperature Accuracy: Accurate temperature readings with an accuracy of ±1.0°C.

Interfaces

  • I²C Compatible: Supports I²C communication protocol with speeds up to 400kHz, facilitating easy integration with microcontrollers and other devices.

Physical Characteristics

  • Small Form Factor: Compact design with dimensions of 4.5 x 4.5 x 3.5mm (width x length x height), suitable for space-constrained applications.
  • SMD, 6 Lead: Surface Mount Device with 6 leads, allowing for straightforward PCB integration.
  • Ceramic Substrate: Ensures durability and reliability, particularly in harsh environmental conditions.

Tags:

Pressure Sensor,

Digital Output Pressure Sensor,

digital output pressure transducer
