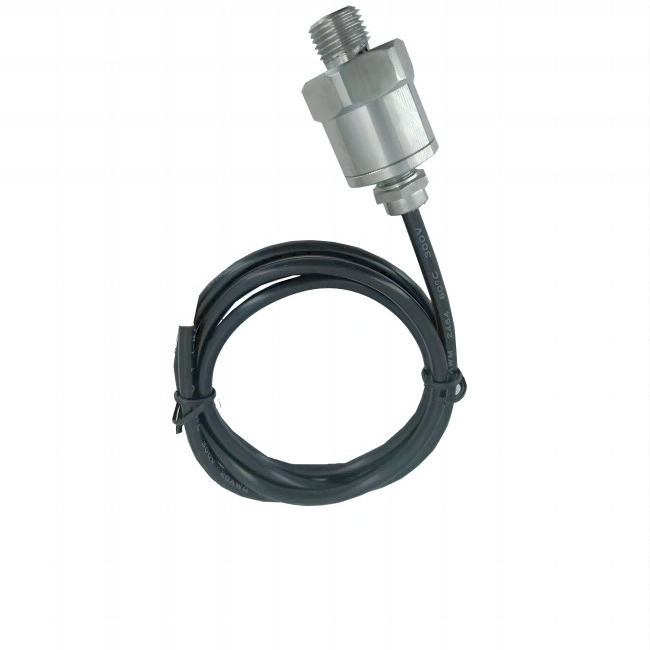

CTS110 Measuring range: 0~2MPa Large operating temperature range: -20°C~85°C

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Model Number: CTS110

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline contact or face-to-face discussion can be negotiated

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price
Highlight:
Measuring Range:
0~2MPa
Accuracy:
±1.0F.S.
Levels Of Protection:
IP65
Christen:
CTS110 Measuring Range: 0~2MPa Large Operating Temperature Range: -20°C~85°C
Temperature Range:
-20~+85 ℃
Range:
0 ~ 500 KPa, 0 To 700 KPa, 0 To 1 MPa, 0~1.6MPa, 0 To 2 MPa Et Al
Measuring Range:
0~2MPa
Accuracy:
±1.0F.S.
Levels Of Protection:
IP65
Christen:
CTS110 Measuring Range: 0~2MPa Large Operating Temperature Range: -20°C~85°C
Temperature Range:
-20~+85 ℃
Range:
0 ~ 500 KPa, 0 To 700 KPa, 0 To 1 MPa, 0~1.6MPa, 0 To 2 MPa Et Al
CTS110 Measuring range: 0~2MPa Large operating temperature range: -20°C~85°C

Structure dimensions and pin definitions

CTS110  Measuring range: 0~2MPa Large operating temperature range: -20°C~85°C 0

Precautions for use

1. Do not touch the sensor diaphragm with hands or other objects, otherwise the sensor diaphragm will be damaged.
2. The transmitter should not be overloaded, otherwise it will cause the sensitive diaphragm of the sensor to be stressed and deformed and drift. The pressure applied must not exceed the transmission
The maximum overload pressure that the sensor can withstand, otherwise the sensor will be completely damaged.
3. The supply voltage of the transmitter must be less than 36VDC (or the highest voltage indicated on the nameplate), and the high-voltage mains must never be connected to the meter.
4. The transmitter is composed of a circuit, and the sum of the load resistance should be in the working area specified in the instruction manual.

5. It is strictly forbidden to impact, knock and other violent impacts of the transmitter during transportation, installation and use.
6. The transmitter must be used according to the specifications, and the different types are not interchangeable.
7. It is strictly forbidden to overvoltage during testing and use. The transmitter range can be reduced, but it is not allowed to exceed the upper limit of the range. The transmitter is instantaneous
Withstands 1.25 times the upper range of overload pressure; However, if the transmitter is subjected to more pressure than the maximum overload pressure, the transmitter will be damaged.
8. The temperature of the medium in contact with the sensor diaphragm must be within the allowable temperature range; Otherwise, the transmitter will be damaged. below 0°C or special
When measuring the medium, it should be disposed of according to the following requirements after stopping the operation: if the measured liquid remains in the measuring chamber, the liquid will freeze, and as a result
The transmitter can be damaged, so it is necessary to drain the liquid to be tested after the operation has been stopped, or to take antifreeze insulation measures.
9. In order to prevent electromagnetic radiation and lightning attack, the transmitter housing should be grounded and connected by shielded cable.
10. The transmitter should not be used to measure media that are corrosive to ceramic, nitrile and stainless steel.

Parameter

applied range Measurement of pressure in industrial process control systems
Detected media Fluid compatible with ceramic, stainless steel, and nitrile rubber
range 0 ~ 500 KPa, 0 to 700 KPa, 0 to 1 MPa, 0~1.6MPa, 0 to 2 MPa et al
Overload pressure 2 Admito full range
accuracy



1% F.S

operating temperature range -20~+85℃
Storage temperature range -40~+85℃
Compensation temperature range 0 ~ 50℃
Effects of changes in the ambient temperature 0.03% / ℃, a typical value
stability <0.5%FS / year
output Current output 4 ~ 20 m ADC two lines; voltage output 0.5-4.5V
Zero point deviation



1.0% FS

Power Supply Voltage 10 to 36 VDC; 12 to 36 VDC or 5VDC at voltage output
Main material 304, with stainless steel
levels of protection



IP65
