Product Details
Place of Origin: WUXI
Brand Name: Consensic

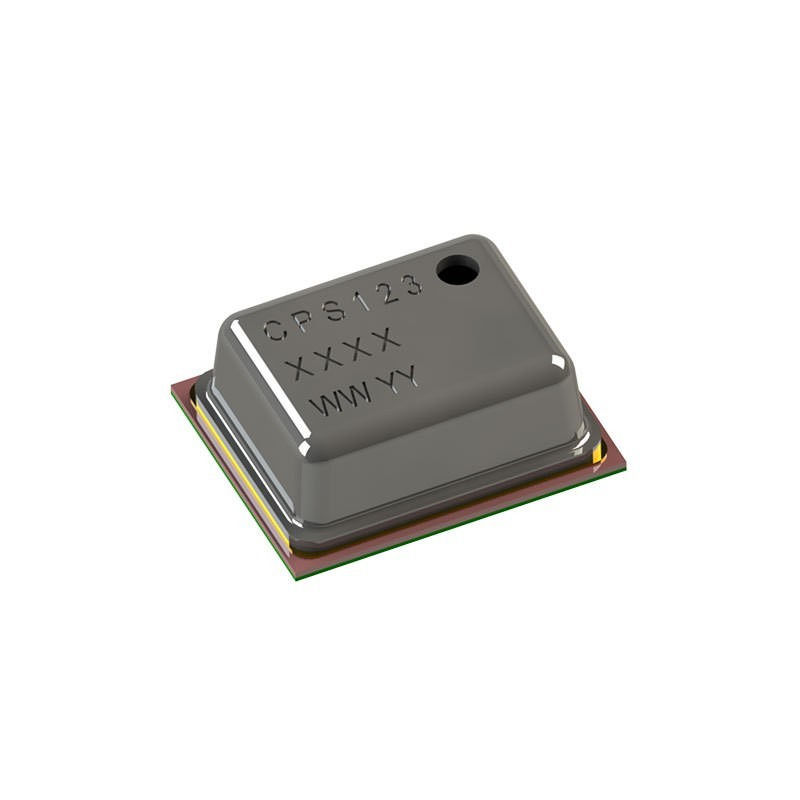

Model Number: CPS123
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline conversation or face-to-face discussion
Delivery Time: 3-7 work days
Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability: 999
Type Of Output: |
Pressure Output |
Output Voltage: |
2.0V~5.5V |
Packaging/Housing: |
LGA 8-pin Metal Housing |
Current Consumption: |
<5uA |
Type Of Output: |
Pressure Output |
Output Voltage: |
2.0V~5.5V |
Packaging/Housing: |
LGA 8-pin Metal Housing |
Current Consumption: |
<5uA |
Applications
Benefits
Features
Overview
The CPS123 SIP (System-in-a-Package) solution comprises of a resistive bridge type pressure sensor and a 24-bit ADC for high resolution and accurate pressure measurements. The fully calibrated pressure and temperature compensated digital output makes the CPS123 solution simple to use. The ADC comprise of an internal calibration logic that provides accurate pressure and temperature measurements to the application via the I²C interface. There is no need to separately download internal calibration coefficients and have the host micro-controller conduct complicated compensation calculations.
Interfaces
Physical Characteristics
CPS123 BLOCK DIAGRAM
TABLE 1: ORDERING INFORMATION
1.1 ABSOLUTE RATINGS
1.2 OPERATING CONDITIONS
1.3 ELECTRICAL PARAMETERS
