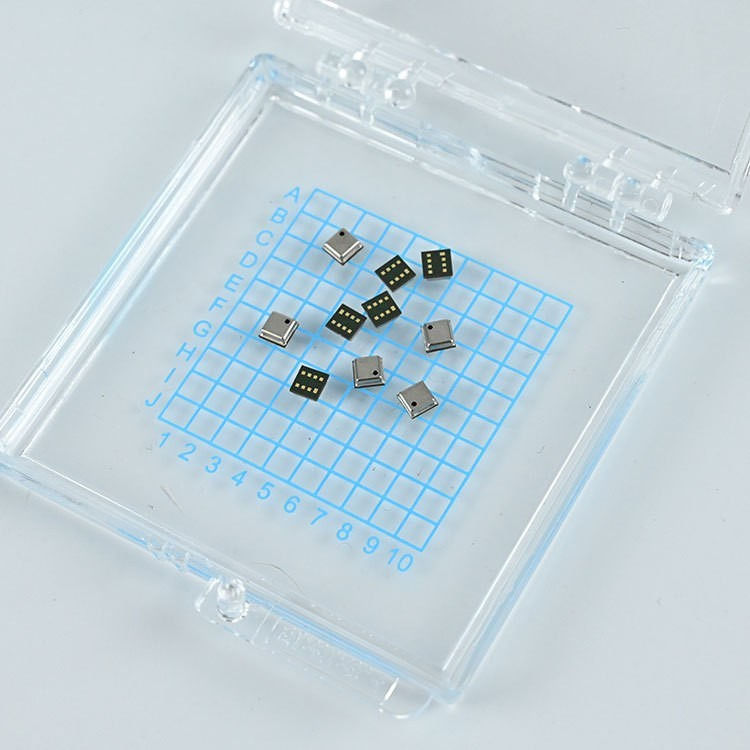

CPS122State-of-the-Art Sensor for Advanced Industrial Applications

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Model Number: cps122

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price

Absolute Ratings

Parameter	Symbol	Conditions	Min	Max	Units
Over Pressure				2X FS	kPa (bar)
Supply Voltage	VDD	With respect to GND	-0.3	6.5	V
Voltages at Analog and Digital I/O Pins	VA_IO, VD_IO		-0.3	VDD +0.3	V
Storage Temperature	TSTOR		-60	150	°C

Operating Conditions

Parameter	Symbol	Conditions	Min	Typ	Max	Units
Pressure Sensor
Range			30		130	kPa (300-1300 mbar)
Resolution			0.001			kPa (0.01 mbar)
Accuracy		70 to 115kPa @ 25°C	-0.15	±0.10	+0.15	kPa (-1.5 to +1.5 mbar)
		70 to 115kPa @ 0°C-50°C	-0.2	±0.15	+0.2	kPa (-2.0 to +2.0 mbar)
Solder Drifts			-0.1		+0.2	kPa
Temperature Sensor
Range			-40		85	°C
Resolution				0.003		°C
Accuracy		-40°C to 85°C	-1	±0.75	+1	°C
Operation
Supply Voltage to GND	VSUPPLY		2	3.0	5.5	V
Operating Temperature Range			-40		85	°C
I²C Pull-Up Resistors	RPU		1	2.2		kΩ

Electrical Parameters

Parameter	Symbol	Conditions	Typ	Max	Units
Supply Current
Supply Current, average	Iavg	VDD=3V	3.95		µA
During conversion	Isc		1.5		mA
Standby (no conversion)	Iss			0.2	µA
Analog to Digital Converter
Resolution	rADC		24		Bit
I²C Clock Frequency	FC,I²C			400	kHz

Region

Company

Address

Phone

Website

Consensic, Inc.

+1 510.588.8735

sales@consensic.com

www.consensic.com

China

Wuxi Consensic Electronics Co., Ltd.

No.86, Dicui Road, B5 Building, Fourth Floor, Room 401, Wuxi, Jiangsu Province, 214072

+86 510.85122279

Fax: +86 510.85122259

Name:	Cps122State-of-the-Art Sensor For Advanced Industrial Applications	Characteristic:	With Automatic Sleep Function
Package:	LGA8	Range:	30~130kpa，700kpa,4MPA,4.5MPA

Name:	Cps122State-of-the-Art Sensor For Advanced Industrial Applications
Characteristic:	With Automatic Sleep Function
Package:	LGA8
Range:	30~130kpa，700kpa,4MPA,4.5MPA
