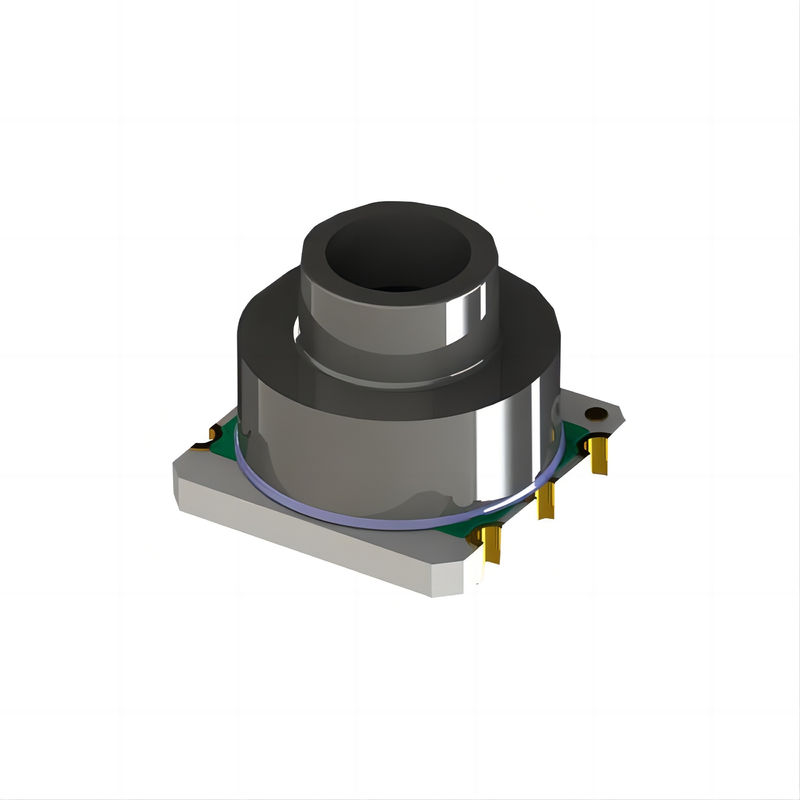

Product Details
Place of Origin: WUXI
Brand Name: Consensic
Model Number: cps135B
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline conversation or face-to-face discussion
Delivery Time: 3-7 work days
Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability: 999
Applicable Products: |
Altimeter, Portable And Fixed Barometer, Fire Extinguisher, Meteorological Station, Navigation, Pressure Monitoring Wearable Devices (waterproof 100 Meters), Smart Homes, Instruments, Industrial Electronics, Instruments, Vacuum Pumps, Air Pumps, Pressure |
Supply Voltage: |
3 |
Operation Temperature: |
85 |
Packaging/Housing: |
SMD6 |
Characteristic: |
Ceramic Substrate, Waterproof Design |
Minimum Number Of Packages: |
10 |
Size: |
4.5x4.5x3.5mm |
Working Pressure: |
50-160kpa,700kpa,1mpa,1.5mpa |
Type Of Output: |
Digital Output I2C |
Accuracy: |
±0.3kPa @ 25°C |
Applicable Products: |
Altimeter, Portable And Fixed Barometer, Fire Extinguisher, Meteorological Station, Navigation, Pressure Monitoring Wearable Devices (waterproof 100 Meters), Smart Homes, Instruments, Industrial Electronics, Instruments, Vacuum Pumps, Air Pumps, Pressure |
Supply Voltage: |
3 |
Operation Temperature: |
85 |
Packaging/Housing: |
SMD6 |
Characteristic: |
Ceramic Substrate, Waterproof Design |
Minimum Number Of Packages: |
10 |
Size: |
4.5x4.5x3.5mm |
Working Pressure: |
50-160kpa,700kpa,1mpa,1.5mpa |
Type Of Output: |
Digital Output I2C |
Accuracy: |
±0.3kPa @ 25°C |
| PARAMETER | SYMBOL | CONDITIONS | MIN | TYP | MAX | UNITS |
| PRESSURE SENSOR | ||||||
| Range |
50 (500) |
160 (1600) |
kPa (mbar) |
|||
| Resolution1 |
0.01 (0.1) |
kPa (mbar) |
||||
| Accuracy |
50 to 160kPa @25°C |
-0.3 (-3.0) |
±0.15 (±1.5) |
+0.3 (+3.0) |
kPa (mbar) |
|
|
50 to 160kPa (0°C to 50°C Verified) |
-0.5 (-5.0) |
±0.3 (±3.0) |
+0.5 (+5.0) |
kPa (mbar) |
||
| Solder Drifts | -0.2 | +0.2 | kPa | |||
| TEMPERATURE SENSOR | ||||||
| Range | -40 | 85 | °C | |||
| Resolution | 0.003 | °C | ||||
| Accuracy | -40°C to 85°C | -1 | ±0.75 | +1 | °C | |
| OPERATION | ||||||
| Supply Voltage to GND2 | VSUPPLY | 2 | 3.0 | 5.5 | V | |
| Operating Temperature Range | -40 | 85 | °C | |||
| I2C Pull-Up Resistors | RPU | 1 | 2.2 | kΩ | ||
|
1Guaranteed by design of 24bits ADC, and calculated according to the range in application. 2 Factory calibrated for Pressure and Temperature at 3.0V±10%. Output accuracy will be affected if used outside this range. Other ranges available upon request. |
||||||
