Product Details
Place of Origin: WUXI
Brand Name: Consensic
Certification: PTC23041812701C-CN01

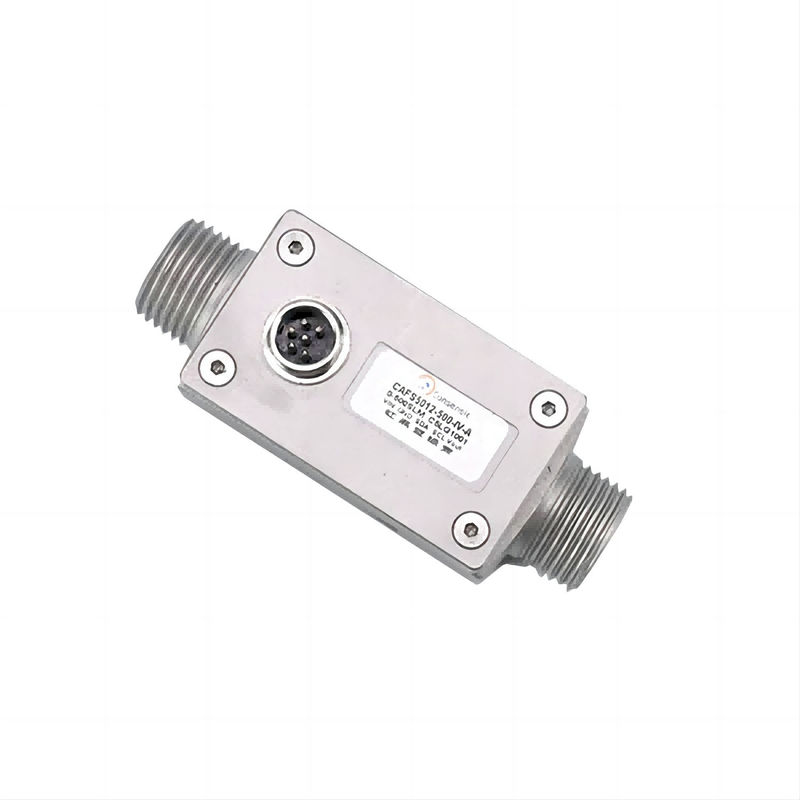

Model Number: CAFS5012
Payment & Shipping Terms
Minimum Order Quantity: Please contact us for details
Price: Offline conversation or face-to-face discussion
Delivery Time: 3-7 work days
Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability: 999
Applicable Products: |
Medical, Industrial, Petroleum, Gas, Chemical, Smelting, Food Processing, Instrumentation, Electromechanical Equipment |
Characteristic: |
Solid State Sensing Core (without Surface Voids Or Fragile Films), Resistant To Blockages And Pressure Shocks |
Monitoring Scope: |
0-400slpm |
Accuracy: |
1.5％F.S |
Output Voltage: |
5 |
Supply Voltage: |
24 |
Applicable Products: |
Medical, Industrial, Petroleum, Gas, Chemical, Smelting, Food Processing, Instrumentation, Electromechanical Equipment |
Characteristic: |
Solid State Sensing Core (without Surface Voids Or Fragile Films), Resistant To Blockages And Pressure Shocks |
Monitoring Scope: |
0-400slpm |
Accuracy: |
1.5％F.S |
Output Voltage: |
5 |
Supply Voltage: |
24 |
The quality is selected and the sense of material is upgraded
Professional quality can be trusted
Wholesale supply from source manufacturers
The specifications are complete
Professionally customized
Stable quality
Intimate after-sales
| Functional items | CAFS5012 | ||
| Performance parameters | unit | remark | |
| Flow range | 0-50/100/200/300/400 | slpm | Customizable |
| Power supply | 8~24VDC,50mA | VDC | Optional |
| precision | ±1.5 | % | FS |
| Response time | 65(10,20,30,50,80,100,200等) | ms | Optional |
| Maximum pressure | 0.8 | MPa | Customizable |
| Methods of Communication | RS485 | Modbus | |
| Measure the turndown ratio | 50:1 | ||
| Output mode | Analog output 1-5V | V | Customizable |
| temperature | Medium temperature (-10~65), ambient temperature (-25~85) | ℃ | |
| interface | NTP1/2” | ||
| Ingress protection | IP40 | ||
| Calibration method | Air, 20°C, 101.325kPa | ||
| Overall material | Stainless steel (aluminum alloy can be customized) | ||
