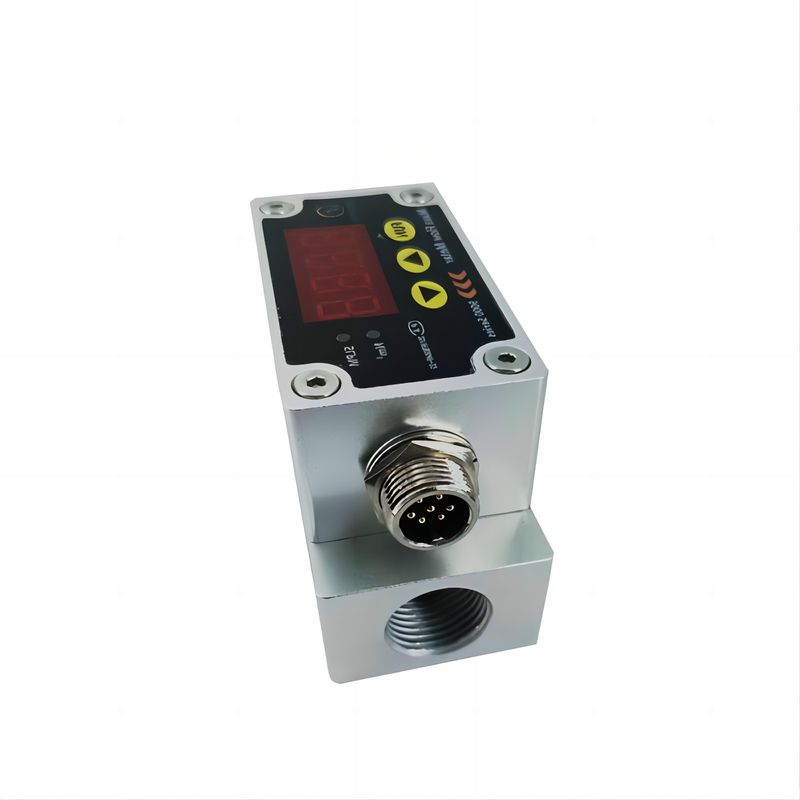

Name: CMF9008 Turndown Ratio 100:1 Nominal Diameter 19 mm Repeatability 0.25%
Brand: Wuxi Consensic Electronic Technology Co., Ltd.
SKU: CMF9008
Availability: InStock

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Certification: PTC23091116101C-CN01

Model Number: CMF9008

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline conversation or face-to-face discussion

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price

Product Details

Product Description

Highlight:

Turndown Ratio:	100:1	Power Supply:	7~24 VDC, 50mA (customizable)
Maximum Pressure:	0.5MPa Customizable Up To 0.8 MPa	Weight:	0.215 Kg

Turndown Ratio:	100:1
Power Supply:	7~24 VDC, 50mA (customizable)
Maximum Pressure:	0.5MPa Customizable Up To 0.8 MPa
Weight:	0.215 Kg

CMF9008 Turndown Ratio 100:1 Nominal Diameter 19 mm Repeatability 0.25%

Product Features:

High Sensitivity: Detects very low start-up flow rates.
Thermal Mass Flow Measurement: The sensor chip uses thermal mass flow measurement, eliminating the need for temperature and pressure compensation, ensuring high accuracy.
Multi-Sensor Integration: Multiple sensors integrated on a single chip, achieving a turndown ratio of up to 100:1 or higher.
Easy Installation and Use: Various connection methods for simple installation and operation.
Flexible Output Options: Data can be actively uploaded via communication interface or queried by the host computer; linear analog voltage output is also available.
LED Display: Shows instantaneous and cumulative flow; allows on-site parameter configuration via keyboard.
Flow Data Logging: Records the maximum and minimum instantaneous flow since power-on, with over-range indication.
High Zero-Point Stability: Ensures stable zero-point over time.
Full Range Stability: High stability, accuracy, and excellent repeatability across the entire measurement range.
Low Power Consumption and Pressure Loss: Efficient operation with minimal energy usage and low pressure drop.
Fast Response Time: Quickly responds to changes in flow rate.

Performance Parameters:

Functional Items:

Series: CMF9000 Digital Gas Mass Flow Meters

Performance Parameters:

Parameter		CMF9008 Turndown Ratio 100:1 Nominal Diameter 19 mm Repeatability 0.25%		Unit	Remarks
Nominal Diameter			8	mm
Turndown Ratio	100:1
Power Supply	7~24	VDC	50mA		Customizable
Accuracy	±1.5	%FS
Repeatability	0.25	%
Response Time	67	ms	Default		Customizable
Maximum Pressure	0.5	MPa			Customizable up to 0.8 MPa
Communication Mode	RS485 (MODBUS)
Output Mode	Analog Output 1-5V			VDC	Optional 4-20mA Output
Display Mode	Instant Flow: SLPM; Accumulated Flow: SL
Temperature	Medium: -10~65°C; Ambient: -25~85°C
Operating Humidity	<100% RH (No Frost or Condensation)
Weight	0.215			kg
Interface	G3/8				Customizable
Calibration Conditions	Air, 20°C, 101.325 kPa
