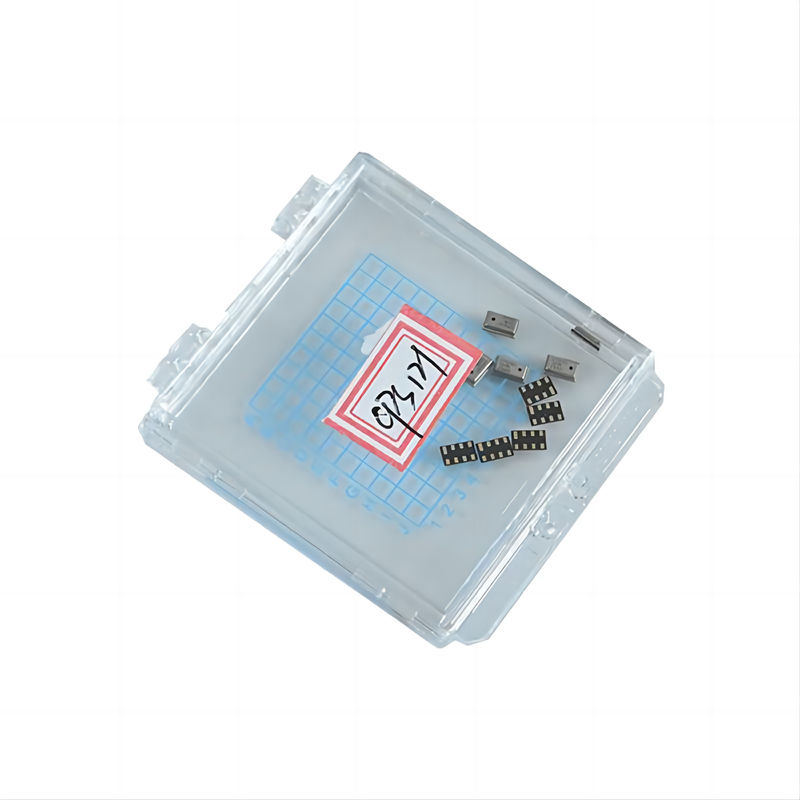

CPS121 95kPa To 105kPa Absolute Pressure Sensor

Name: CPS121 95kPa To 105kPa Absolute Pressure Sensor
Brand: Wuxi Consensic Electronic Technology Co., Ltd.
SKU: CPS121
Availability: InStock

Product Details

Place of Origin: WUXI

Brand Name: Consensic

Certification: PTC21051702401C-EN01

Model Number: CPS121

Payment & Shipping Terms

Minimum Order Quantity: Please contact us for details

Price: Offline contact or face-to-face discussion can be negotiated

Delivery Time: 3-7 work days

Payment Terms: L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability: 999

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                105kPa Absolute Pressure Sensor, 95kPa Absolute Pressure Sensor, 105kPa absolute pressure transducer


Minimum Number Of Packages:	10pcs	Encapsulation:	LGA
Traits:	Low Power Consumption	Compact Size:	3 X 5 X 1.2 Mm (W X L X H).

Minimum Number Of Packages:	10pcs
Encapsulation:	LGA
Traits:	Low Power Consumption
Compact Size:	3 X 5 X 1.2 Mm (W X L X H).

CPS121 95kPa To 105kPa Absolute Pressure Sensor

CPS121 Pressure Absolute Accuracy: ±0.1 kPa (±1.0 mbar) from 0°C to 50°C, within 95 kPa to 105 kPa.

The CPS121 is a high-resolution pressure sensor system-in-a-package (SIP) that integrates a resistive bridge type pressure sensor with a 24-bit ADC. Designed for high precision and accuracy, the CPS121 offers fully calibrated pressure and temperature compensated digital outputs, making it a straightforward solution for various applications.

Key Features

Factory Calibrated Pressure and Temperature Sensor: Ensures accuracy and simplifies integration.
Wide Supply Voltage Range: Operates between 2V and 5.5V, with 3V as the typical value.
Low Power Consumption:Average Current Consumption: <5 µA per measurement;Sleep State Current Consumption: <200 nA at 25°C
Wide Operating Temperature Range: Functional from -40°C to +85°C.
High Accuracy:Pressure Absolute Accuracy: ±0.1 kPa (±1.0 mbar) from 0°C to 50°C, within 95 kPa to 105 kPa.Pressure Relative Accuracy: ±0.01 kPa (<1 m).Temperature Accuracy: ±1.0°C.

Interfaces

I²C Interface: Compatible with speeds up to 400 kHz, enabling easy integration with microcontrollers and other I²C devices.

Physical Characteristics

Compact Size: 3 x 5 x 1.2 mm (W x L x H).
LGA Package: 8-lead package with a top-side sensing port for easy installation and use in various applications.

ORDERING INFORMATION

PART NUMBER	OUTPUT MODE	OPERATION MODE	PACKAGE
CPS121	I C	Sleep	8-Lead LGA
SALES and CONTACT INFORMATIONsales@consensic.com www.consensic.com
	China Wuxi Consensic Electronics Co., Ltd. No.86,Dicui Road,B5 Building, Fourth Floor,Room 401, Wuxi, Jiangsu Province, 214072 Ph: +86 510.85122279 Fax: +86 510.85122259
